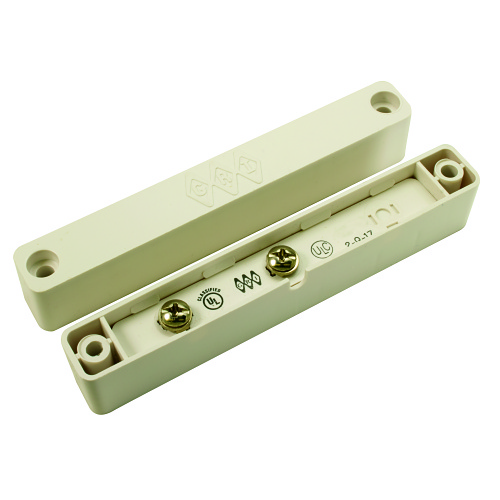

GRI 402WG-B Industrial Surface Mount Switch Set, Wide Gap, SPDT, Brown, Concealed Terminals
Brand: George Risk Industries
ADI #:GI-402WGB
Model #: 402WG-B
Name: GRI 402WG-B Industrial Surface Mount Switch Set, Wide Gap, SPDT, Brown, Concealed Terminals
Product Overview
The GRI series of commercial and industrial switch sets offers the installer two choices. The 400 Series incorporates hidden terminals, inset into the recessed back to provide tamper resistant installations. The 410 Series has the standard terminals located on the top of the switch. Both options give the installer a regular gap of 1 1/2" , while the wide gap version is up to 3 1/4" , which covers the various types of steel door and frame conditions found at every commercial and industrial site. Spacers and mounting hardware are included with the set. The 410P version offers 3 feet of 2 conductor cable. Switches, magnets and mounting brackets are also available separately.
General Information
Name : GRI 402WG-B Industrial Surface Mount Switch Set, Wide Gap, SPDT, Brown, Concealed Terminals , George Risk IndustriesCategory : Magnetic Contacts
UPC Code : 697625008100
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : GI-402WGB
Brand Name : GRI
Manufacturer : George Risk Industries
Manufacturer Part Number : 402WG-B
Product Model : 402WG-B
Product Name : 402WG-B Magnetic Contact
Product Series : 410
Product Type : Magnetic Contact
Technical Information
Contact Configuration : SPDT
Contact Form : Form C
Contact Resistance : 140000 Micro Ohm
Contact Resistance (Ohm) : 0.14
Mounting Type : Surface Mount
Power Consumption : 5 W
Recommended Use : Door
Standard Gap : 3.25"
Standard Gap (mm) : 82.55
Termination Style : Screw Terminal
Physical Characteristics
Application/Usage : Commercial, Industrial
Power Description
Input Current : 250 mA
Input Current (A) : 0.25
Input Voltage : 175 V DC
Input Voltage (V DC) : 175
Power Consumption (W) : 5.000
Product Information
Contact Type : Open/Closed
Warranty
Limited Warranty : Lifetime
Miscellaneous
Additional Information : <ul> <li>Spacer and mounting screws included</li> <li>Supervisory loops or dummy terminals on request Private labeling on request</li> <li>Switches or magnets are available separately</li> <li>410P Has 36" 2 Conductor Vinyl Jacketed Cable</li> </ul>
Certifications & Standards : <ul> <li>UL</li> <li>ULC</li> <li>UL 10C</li> </ul>
Country of Origin : United States
Features : End of Line (EOL) Resistor
