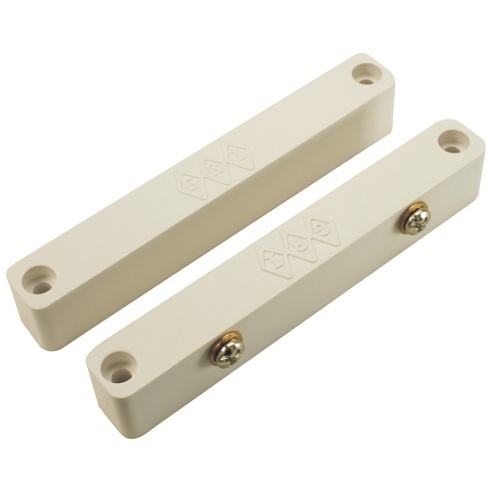

GRI 410-W 410 Industrial Surface Mount Switch Set, Standard Gap, 10W, 160VDC, 0.40 Amp, Closed Loop, N/O, A, White

Brand: George Risk Industries
ADI #:GI-410W Model #: 410-W  Name: GRI 410-W 410 Industrial Surface Mount Switch Set, Standard Gap, 10W, 160VDC, 0.40 Amp, Closed Loop, N/O, A, White
  • The GRI 410 series of commercial and industrial switch sets incorporates standard terminals, inset into the recessed back to provide tamper resistant installations.
  • The unit has a regular gap of 1 1/2? which covers the various types of steel door and frame conditions found at every commercial and industrial site. Spacers and mounting hardware are included with the set. Switches, magnets and mounting brackets are also available separately.
GRI 410-B Magnetic Contact

Product Overview

The GRI series of commercial and industrial switch sets offers the installer two choices. The 400 Series incorporates hidden terminals, inset into the recessed back to provide tamper resistant installations. The 410 Series has the standard terminals located on the top of the switch. Both options give the installer a regular gap of 1 1/2" , while the wide gap version is up to 3 1/4" , which covers the various types of steel door and frame conditions found at every commercial and industrial site. Spacers and mounting hardware are included with the set. The 410P version offers 3 feet of 2 conductor cable. Switches, magnets and mounting brackets are also available separately.

General Information

Name : GRI 410-W 410 Industrial Surface Mount Switch Set, Standard Gap, 10W, 160VDC, 0.40 Amp, Closed Loop, N/O, A, White , George Risk Industries
Category : Magnetic Contacts
UPC Code : 697625008254
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : GI-410W
Brand Name : GRI
Manufacturer : George Risk Industries
Manufacturer Part Number : 410-W
Product Model : 410-B
Product Name : 410-B Magnetic Contact
Product Series : 410
Product Type : Magnetic Contact

Technical Information

Contact Configuration : N.O.
Contact Form : Form A
Contact Resistance : 150000 Micro Ohm
Contact Resistance (Ohm) : 0.15
Mounting Type : Surface Mount
Power Consumption : 10 W
Recommended Use : Door, Frame
Standard Gap : 0.50"
Standard Gap (mm) : 12.7
Termination Style : Screw Terminal

Physical Characteristics

Application/Usage : Commercial, Industrial, Steel
Color : White

Power Description

Input Current : 400 mA
Input Current (A) : 0.4
Input Voltage : 160 V DC
Input Voltage (V DC) : 160
Power Consumption (W) : 10.000

Product Information

Contact Type : Closed Loop
Installation Type : Hybrid

Warranty

Limited Warranty : Lifetime

Miscellaneous

Certifications & Standards : <ul> <li>UL</li> <li>ULC</li> <li>UL 10C Fire Rates</li> </ul>
Features : End of Line (EOL) Resistor, Tamper Resistant
