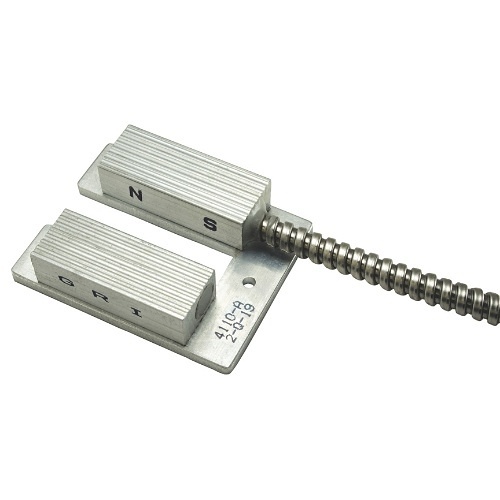

GRI 4112A Commercial Overhead Door Switch, SPDT, 18" Stainless-Steel Armored Cable
4112A
|GI-4112A
Shop all George Risk Industries
GRI 4112A Commercial Overhead Door Switch, SPDT, 18" Stainless-Steel Armored Cable
4112A | GI-4112A
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The GRI 4110 Series is basically a "vane" switch for use on storage units with overhead doors and latch type locks. Intended to be mounted on a roll up type door channel, the 4110 will not allow the alarms system to arm unless the bolt or latch, which serves as a "shunt" between the reed switch and magnet, is in a locked position. Removal or tampering of the bolt or latch removes the shunting effect and an alarm will be activated when the circuit is opened.
Main Features
- Latch type door protection
- Vane switch shunt
- Cost effective
- Easy installation
- Armored or jacketed cable
General Information
Name: GRI 4112A Commercial Overhead Door Switch, SPDT, 18" Stainless-Steel Armored Cable
Category: George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 697625008124
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number GI-4112A Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 4112A Product Model 4112A Product Name 4112A Magnetic Contact Product Type Magnetic Contact
Application/Usage Commercial Armored Yes Connectivity Technology Wired Contact Form Form C Material Stainless Steel Power Consumption 5W
Color Silver
Input Current 250mA Input Voltage 175V DC Power Source DC
Contact Type Closed Loop, Open Loop, SPDT Installation Type Commercial
Limited Warranty Lifetime
Country of Origin US
