GRI 4473-B 3/4" Switch 3/8" Magnet Recessed Switch Set, 10W, 200VDC, 0.50A, Closed, N/O, A, Brown

Brand: George Risk Industries
ADI #:GI-4473B Model #: 4473-B  Name: GRI 4473-B 3/4" Switch 3/8" Magnet Recessed Switch Set, 10W, 200VDC, 0.50A, Closed, N/O, A, Brown
  • GRI Introduces their newest line of contacts: The MIGHTY MAG Series, to assist in resolving the installer’s problem of drilling into the new thinner, vinyl windows.
  • hese rare earth magnets are less than 1/8? high and install fast and easily without worry over damage to the window itself. GRI’s Mighty Magnets make use of a rare earth alloy which allows the size of the magnet to be significantly reduced while still retaining or improving the gap involved.

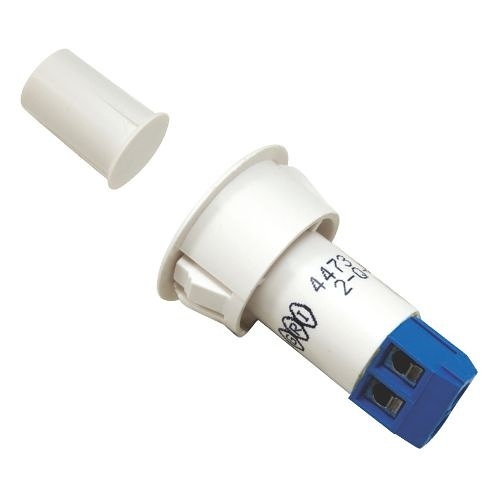

GRI 4473-B Magnetic Contact

Product Overview

The 120T/4473 requires that a 3/4" hole be drilled for the switch and 3/8" hole for the magnet. The 3/4" switch mounting is desirable since the extra wire and connections can be more easily inserted into the larger hole for concealment. Also, should the need arise for testing or replacement, it would be easy to pull the switch, extend the extra wire and access the original connections.

Installation is further enhanced by using a smaller 3/8" diameter magnet to avoid the need to center a larger hole in a 1" to 1 1/2" thick door or window. This will allow you to offset the magnet should it be required.

The 120T/4473 switch set was developed for and should only be used in openings with wooden or aluminum frames.

Main Features

  • Recessed Magnetic Contact
  • Press To Fit
  • Also Available in Stubby Version
  • Available in closed loop, open loop and SPDT
  • Wire leads or terminal blocks
  • 12” #22AWG Leads or Screw Terminals
  • Available with new rare earth Magnets
  • Longer Leads, Zip Cord or Jacketed Cable Upon Request
  • Hermetically Sealed
  • Plated Contacts Resist Sticking or Freezing
  • Built-in E.O.L. Resistors and Diodes Upon Request
  • Supervisory Loops Upon Request
  • Switches and Magnets Available Separately
  • Colors: White, Brown, Gray, Black
  • Lifetime Warranty

General Information

Name : GRI 4473-B 3/4" Switch 3/8" Magnet Recessed Switch Set, 10W, 200VDC, 0.50A, Closed, N/O, A, Brown , George Risk Industries
Category : Magnetic Contacts
UPC Code : 697625008490
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : GI-4473B
Brand Name : GRI
Manufacturer : George Risk Industries
Manufacturer Part Number : 4473-B
Product Model : 4473-B
Product Name : 4473-B Magnetic Contact
Product Series : 4473
Product Type : Magnetic Contact

Technical Information

Magnet Size : 0.38"
Magnet Size (mm) : 9.525
Standard Gap : 0.50"
Standard Gap (mm) : 12.7

Physical Characteristics

Color : Brown

Warranty

Limited Warranty : Lifetime

Miscellaneous

Additional Information : <ul><li>Recessed 3/4" switch</li><li>Press to fit</li><li>12" #22 AWG leads or screw terminals</li><li>Hermetically sealed</li><li>Plated contacts resist sticking or freezing</li><li>Closed loop</li></ul>
Country of Origin : United States
