GRI 4532L Floor Mount Miniature Overhead Door Switch Set, L-Bracket, 2-1/2" Gap, 10W, 200VDC, 0.50A, Closed Loop, N/O, and 36" Armored Cable, Aluminum
GRI 4532L Floor Mount Miniature Overhead Door Switch Set, L-Bracket, 2-1/2" Gap, 10W, 200VDC, 0.50A, Closed Loop, N/O, and 36" Armored Cable, Aluminum
- The 4532L series Overhead Door Switch Set is a miniature, low-profile reed switch in a cast aluminum for durability in harsh environments
- The 4532L features aWideWorking gap of up to 2 with two' of heavy duty armored cable for protection from the elements and a versatile universal magnetWhich can be mounted at various angles for those difficult installations
- The 4532L series is equipped with an L bracket
- The 4532L series Overhead Door Switch Set is a miniature, low-profile reed switch in a cast aluminum for durability in harsh environments
- The 4532L features aWideWorking gap of up to 2 with two' of heavy duty armored cable for protection from the elements and a versatile universal magnetWhich can be mounted at various angles for those difficult installations
- The 4532L series is equipped with an L bracket
Sign In for Dealer Pricing
Become an ADI Customer- The 4532L series Overhead Door Switch Set is a miniature, low-profile reed switch in a cast aluminum for durability in harsh environments
- The 4532L features aWideWorking gap of up to 2 with two' of heavy duty armored cable for protection from the elements and a versatile universal magnetWhich can be mounted at various angles for those difficult installations
- The 4532L series is equipped with an L bracket
GRI 4532L Floor Mount Miniature Overhead Door Switch Set, L-Bracket, 2-1/2" Gap, 10W, 200VDC, 0.50A, Closed Loop, N/O, and 36" Armored Cable, Aluminum
4532L | GI-4532L
Please sign in to view pricing and availability and to add to cart.
Accessories
Product Overview
Mini Floor Mount/2’ Armored Cable/Closed Loop/With 4175 Bracket and M-15 Magnet

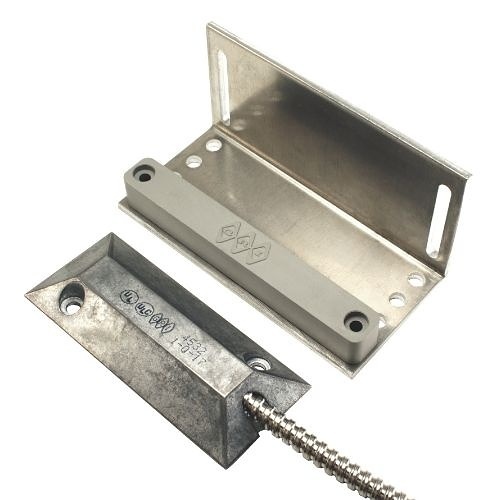

The 4532 is a miniature, low-profile reed switch in cast aluminum for durability in harsh environments. The 4532 features a wide working gap of up to 3" with two feet of heavy-duty armored cable for protection from the elements and a versatile universal magnet which can be mounted at various angles for those difficult installations. The 4532 is also available with an optional "L" bracket. Order part number 4532L for this option. The 4532 is shipped as a set but can be packaged separately.
Main Features
- The 4532L series Overhead Door Switch Set is a miniature, low-profile reed switch in a cast aluminum for durability in harsh environments
- The 4532L features aWideWorking gap of up to 2 with two' of heavy duty armored cable for protection from the elements and a versatile universal magnetWhich can be mounted at various angles for those difficult installations
- The 4532L series is equipped with an L bracket
- Max Initial Contact Resistance: .150
- Max Contact Rating: 10W
- 200 VDC
- Max Switching Current: .250 A
General Information
Specifications
-
ADI Part Number GI-4532L Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 4532L Product Model 4532L Product Name 4532L Magnetic Contact Product Series 4532 Product Type Magnetic Contact
-
Connectivity Technology Wired Standard Gap 2.5"
-
Color Black Material Aluminum
-
Power Source DC
-
Contact Type Closed Loop, N.O. Installation Type Hybrid Mount Type Overhead
-
Limited Warranty Lifetime
-
Country of Origin US Package Contents - 4532L Magnetic Contact
- Mounting Hardware
