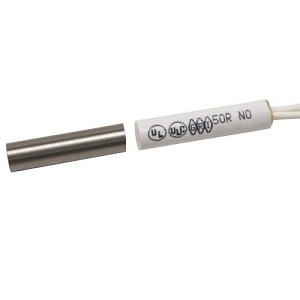

GRI 50R-12WG-W 1/4" Miniature Recessed Switch Set, Wide Gap 3/4", Closed Loop, Reed Form, 10 W, White
GRI 50R-12WG-W 1/4" Miniature Recessed Switch Set, Wide Gap 3/4", Closed Loop, Reed Form, 10 W, White
- Lifetime Warranty
- Colors:White, Brown or Gray
- UL and ULC Approved
- Lifetime Warranty
- Colors:White, Brown or Gray
- UL and ULC Approved
.jpg)
- Lifetime Warranty
- Colors:White, Brown or Gray
- UL and ULC Approved
GRI 50R-12WG-W 1/4" Miniature Recessed Switch Set, Wide Gap 3/4", Closed Loop, Reed Form, 10 W, White
50R-12WG-W | GI-50R12WGW
Please sign in to view pricing and availability and to add to cart.
Accessories
Product Overview
The 50R and 50RF Series are 1/4" diameter switch sets designed for applications where a small diameter recessed switch set is required. This makes the set desirable in residential installations where no sign of an alarm system should be seen or where there is not room to install a larger diameter switch set. The 50R-12 is a straight cylindrical set for flush or counter sunk installations. The 50RF-12 set is flanged to prevent inadvertent pulling of the switch into the wall.
INSTALLATION APPLICATIONS:
The 50R and 50RF series are 1/4" diameter switch sets designed for applications where a small diameter recessed switch set is required. This makes the set desirable in residential installations where no sign of an alarm system should be seen or where there is not room to install a larger diameter recessed switch set. The 50R-12 is a straight cylindrical set for flush or counter sunk installations. The 50RF-12 set is flanged to prevent inadvertent pulling of the switch into the wall.
Main Features
- Lifetime Warranty
- Colors:White, Brown or Gray
- UL and ULC Approved
- Available in Closed Loop, Open Loop or SPDT
- Flange Available
- Standard 12" Leads
- Longer Leads or Zip Cord Available on Request
- Built-in E.O.L Resistors and Diodes Available on Request
- Switches or Magnets are Available Separately
- Supervisory Loops Available
General Information
Specifications
-
ADI Part Number GI-50R12WGW Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 50R-12WG-W Product Model 50R-12WG-W Product Name 50R-12WG-W Magnetic Contact Product Series 50R Product Type Magnetic Contact
-
Connectivity Technology Wired Contact Form Form A Power Consumption 10W Standard Gap 0.75"
-
Application/Usage Commercial, Residential Color White
-
Input Current 500mA Input Voltage 200V DC Power Source DC
-
Contact Type Closed Loop, N.O. Diameter 0.3" Installation Type Residential Length 12" Mount Type Recessed Mount
-
Limited Warranty Lifetime
-
Additional Information - Standard Gap 1/2"+
- Wide Gap 1"+
- Hermetically Sealed
- Plated Contacts Resist Sticking or Freezing
Country of Origin US Features End of Line (EOL) Resistor
