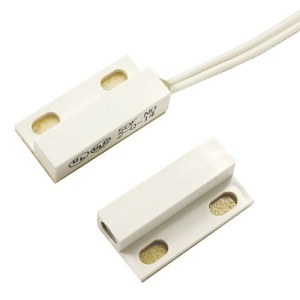

The GRI 50, 50F and 55F Series switch sets are the most chosen configurations for residential installations. A low profile plus self adhesive 3M tape make installing the sets quick and simple. The 50F and 55F come with a breakaway flange for applications where screw mounts are advisable. The 50 type is self adhesive only. The 50 and 50F have 12" leads exiting the case on the end. The 55F has 12" leads exiting from the middle of the case.
Available in Open Loop, Closed Loop and SPDT, Regular and Wide Gap, White, Brown and Gray. All mounting hardware included.
The G.R.I. 50, 50F and 55F series switch sets are the most chosen configurations for residential installations. Low profile and self adhesive 3M tape make installing the sets quick and simple. The 50F and 55F come with a breakaway flange for applications where screw mounts are advisable. The 50 type is self adhesive only. The 50 and 50F have 12” leads exiting the case on the end. The 55F has 12” leads exiting from the middle of the case. Available in open loop, closed loop and SPDT, regular and wide gap, White, Brown, Gray and Almond . All mounting hardware included.
- Lifetime Warranty
- UL and ULC approved
- Center and end leads available
- 12" leads
- Breakaway flanges
- Adhesive and screw mount
- Standard gap 1/2" +
- Wide gap 1" +
- Longer leads, zip cord or jacketed cable on request
- Built-in resistors and diodes available on request
- Built-in E.O.L. resistors and diodes available on request
- Switches or magnets are available separately
- Available in open loop, closed loop and SPDT
Name : GRI 55F-12WG-W-BA 55F Series Miniature Surface Mount Switch Set with Center Lead, Wide Gap, 10W, 200VDC, 0.50 Amp, Closed, N/O, A, White , George Risk Industries
Category : Magnetic Contacts
UPC Code : 697625009947
Country of Origin : United States. Country of origin is subject to change.
ADI Part Number : GI-55F12WGWH
Brand Name : GRI
Manufacturer : George Risk Industries
Manufacturer Part Number : 55F-12WG-W-BA
Product Model : 55F-12WG-W-BA
Product Name : 55F-12WG-W-BA Magnetic Contact
Product Series : 55F
Product Type : Magnetic Contact
Contact Configuration : N.O.
Contact Form : Form A
Contact Resistance : 150000 Micro Ohm
Contact Resistance (Ohm) : 0.15
Lead Length : 12"
Lead Length (mm) : 304.8
Mounting Type : Surface Mount
Power Consumption : 10 W
Standard Gap : 1"
Standard Gap (mm) : 25.4
Termination Style : Center Lead
Connectivity Technology : Cable
Application/Usage : Industrial
Color : White
Input Current : 500 mA
Input Current (A) : 0.5
Input Voltage : 200 V DC
Input Voltage (V DC) : 200
Power Consumption (W) : 10.000
Contact Type : Closed Loop
Limited Warranty : Lifetime
Additional Information : <ul> <li>Excellent For Residential Applications</li> <li>Hermetically Sealed</li> <li>Plated Contacts Resist Sticking or Freezing</li> <li>Mounting Hardware Included</li> <li>Supervisory Loops Upon Request</li> </ul>
Certifications & Standards : <ul> <li>UL</li> <li>ULC</li> </ul> <p></p>
Country of Origin : United States
Features : End of Line (EOL) Resistor
Package Contents : <ul> <li>55F-12WG-W-BA Magnetic Contact</li> <li>Mounting Hardware</li> </ul>
