GRI GI-E18012WGG 180 Series 3/4" Steel Door Recessed Switch Set, Wide Gap, 10W, 200VDC, 0.40 Amp, Closed Loop, N/O, A, & U.L. 10C Fire Rated, Gray

Brand: George Risk Industries
ADI #:GI-E18012WGG Model #: GI-E18012WGG  Name: GRI GI-E18012WGG 180 Series 3/4" Steel Door Recessed Switch Set, Wide Gap, 10W, 200VDC, 0.40 Amp, Closed Loop, N/O, A, & U.L. 10C Fire Rated, Gray
  • Lifetime Warranty
  • Colors: White, Brown, Grey or Black
  • UL and ULC Approved
GRI GI-E18012WGG 180 Series 3/4" Steel Door Recessed Switch Set, Wide Gap, 10W, 200VDC, 0.40 Amp, Closed Loop, N/O, A, & U.L. 10C Fire Rated, Gray

Product Overview

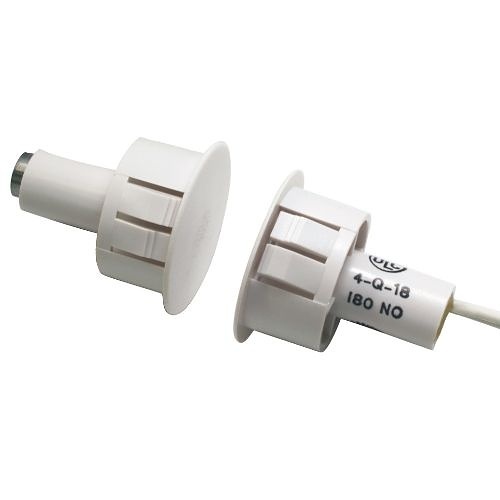

The GRI 180 Series is the industry standard 3/4" diameter recessed steel door switch set with 12" leads. The 184 Series is a 1" diameter switch set.

The innovative GRI 8080-T Series is a 3/4" diameter recessed switch set designed for residential, commercial and industrial steel doors and frames. The shorter length and the introduction of PC board type terminals makes the installation of the set quick and simple with no soldering, B connectors or tape to catch during installation or removal, reducing the cost of installation and creating greater profitability.

General Information

Name : GRI GI-E18012WGG 180 Series 3/4" Steel Door Recessed Switch Set, Wide Gap, 10W, 200VDC, 0.40 Amp, Closed Loop, N/O, A, & U.L. 10C Fire Rated, Gray , George Risk Industries
Category : Magnetic Contacts
UPC Code : 697625082193
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : GI-E18012WGG
Brand Name : GRI
Manufacturer : George Risk Industries
Manufacturer Part Number : GI-E18012WGG
Product Name : 180 Magnetic Contact
Product Series : 180
Product Type : Magnetic Contact

Technical Information

Contact Configuration : N.O.
Contact Form : Form A
Contact Resistance : 150000 Micro Ohm
Contact Resistance (Ohm) : 0.15
Lead Length : 12"
Lead Length (mm) : 304.8
Mounting Type : Recessed Mount
Power Consumption : 10 W
Recommended Use : Door
Standard Gap : 0.75"
Standard Gap (mm) : 19.05

Physical Characteristics

Application/Usage : Commercial, Industrial, Residential
Product Material : Steel

Power Description

Input Current : 400 mA
Input Current (A) : 0.4
Power Consumption (W) : 10.000

Product Information

Contact Type : Closed Loop

Warranty

Limited Warranty : Lifetime

Miscellaneous

Certifications & Standards : <p>UL and ULC Approved</p>
Country of Origin : United States
Features : End of Line (EOL) Resistor, Self-lock Mounting
