Product Overview
Magnasphere’s ® patented technology utilizes the principal of Spherical Magnetism. The heart of the switch is a magnetic sphere, or ball contact. This sphere is housed in a durable metal housing. Completing the switch is a seal that contains the contacting electrode, insulated from the magnetic perimeter by a time proven ceramic to metal bond. The case or seal provides the second contact point required to complete the electrical circuit. The seal/electrode cap is welded to the housing in an inert atmosphere providing a hermetically sealed contact.
INSTALLATION APPLICATIONS:

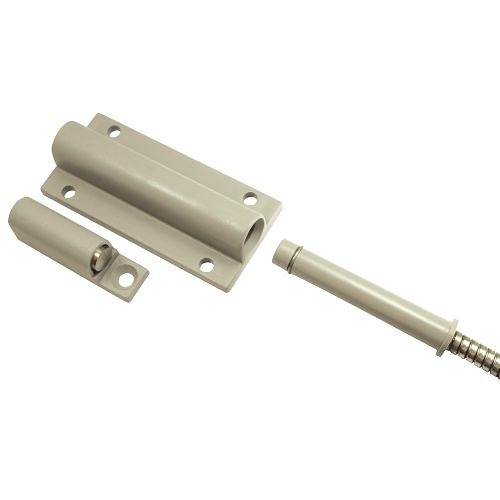

The GRI MS4702-A has three parts: the switch probe, the switch receptacle and the magnet. The MS4702-A is designed for use when standard surface mount security switches won’t work due to swinging gates, free moving objects, vehicle protection, worn gates/doors or expanding metal curtains. Now you can protect products and property that is kept outdoors such as recreation vehicles, golf carts, lawn mowers, ladders, truck tractor trailer, motor boats, ATV’s or a host of rental equipment. To use the Pull Apart, attach the probe receptacle to a solid surface and anchor it well. Position the receptacle and switch probe so that the probe can pull out of the receptacle easily. Don’t connect it at a right angle or upside down. This will delay and/or alter the switch’s ability to react to tampering and theft. Connect the appropriate zone from the alarm panel to the switch probe. Thread the armored cable through the item to be protected and insert the probe into the receptacle.
Main Features
- Higher Level of Security
- Spherical Magnetism
- Resistant to Magnetic Tamper and Defeat
- Hermetically Sealed
- Heavy Duty For Improved Durability
- Great for Marinas - Truck Docks - Any Portable Merchandise
- 3 Foot Jacketed or Armored Cable
- Custom Lead Lengths Upon Request
- Armored Disconnect Cable Available - See Specialty Section
- Gray Only
- Lifetime Warranty
General Information
Name : GRI MS4702 Magnasphere Special Purpose Pull Apart Switch Set with 36" Jacketed Lead , George Risk Industries
Category : Magnetic Contacts
UPC Code : 697625050307
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : GI-MS4702
Brand Name : GRI
Connectivity Technology : Cable
Manufacturer : George Risk Industries
Manufacturer Part Number : MS4702
Product Model : MS4702
Product Name : MS4702 Magnetic Contact
Product Series : MS4702
Product Type : Magnetic Contact
Technical Information
Contact Configuration : N.O.
Contact Form : Form A
Contact Resistance : 400000 Micro Ohm
Contact Resistance (Ohm) : 0.4
Lead Length : 36"
Lead Length (mm) : 914.4
Mounting Type : Pull Apart
Recommended Use : Door, Gate
Physical Characteristics
Color : Gray
Product Information
Contact Type : Closed Loop
Warranty
Limited Warranty : Lifetime
Miscellaneous
Additional Information : <ul> <li>Great for Marinas - Truck Docks - Any Portable Merchandise</li> <li>Armored Disconnect Cable Available - See Specialty Section</li> </ul>
Country of Origin : United States
Features : End of Line (EOL) Resistor, Heavy Duty, Tamper Resistant
