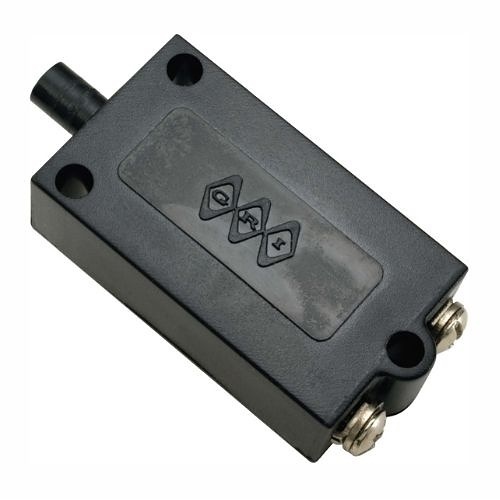

GRI TS02 Box Tamper Switch, Open Loop, Non-Shunt, Terminals, Normally Closed
TS02 | GI-TS02
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The TS-01 and TSW-01 magnetic reed, three hole box tamper switch is designed to fit almost all standard siren and panel boxes. Available with an adjustable plunger length, the TS-01 allows the installer to alarm the box to detect opening or prying to remove the box from its mounted position. Screw terminals or wire leads provide easy hook up.
Main Features
- Environmentally Sealed Contacts
- Eliminates False Alarms and Nuisance Service Calls
- Magnetically Plunger Actuated
- No Blades To Corrode
- No More Switch Bounce
- Replaces Older Mechanical Tampers
- No Additional Hardware or Adapters Needed
- Longer Service Life
- Fits Most Bell, Siren and Control Panel Mounting Hole Patterns
- Vibration Free
General Information
Name: GRI TS02 Box Tamper Switch, Open Loop, Non-Shunt, Terminals, Normally Closed
Category: George Risk Industries, Intrusion, Alarm Contacts, Plunger & Toggle Switches
UPC Code: 697625043019
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number GI-TS02 Brand Name George Risk Industries Manufacturer Part Number TS02 Packaged Quantity 10
Package Type Pack
Limited Warranty Lifetime Warranty
Country of Origin US Features Available in Closed Loop, Open Loop and SPDT, Available with Screw terminals or Wire Leads, Eliminates False Alarms and Nuisance Service Calls, Environmentally Sealed Contacts, Fits Most Bell, Siren and Control Panel Mounting Hole Patterns, Install and forget, Longer Service Life, Magnetically actuated plunger, No Additional Hardware or Adapters Needed, No blades to corrode, No more switch bounce, Replaces Older Mechanical Tampers, Travel distance total .40, pre-travel is .175 to .240, Use Indoors, Vibration Free
