Product Overview

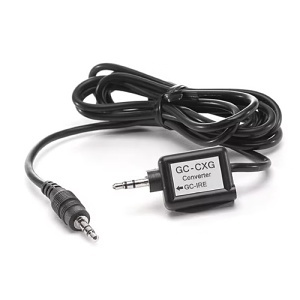

The Global Caché GC-CXG converts Xantech and Xantech compatible IR emitter output voltages to the proper levels required by the Global Caché GCIRE IR Extender. The GC-IRE translates IR signals to serial ACSII text, which can be read by a PC serial port or over the network utilizing the GC-100 Network Adapter's RS232 serial port. Simply plug the 3.5mm stereo jack into a Xantech distribution box (emitter output) and the other end into the GC-IRE. The GC-IRE is responsible for filtering out noise and providing good IR commands before being converted to serial ASCII text. IR commands are represented as comma delimited ASCII text. (See the API specification for IR serial formats on Global Caché’s website.) In the following installation, a SpeakerCraft AT-1.0 emitter output provides the IR signal for transmission over a network. First, the GCCXG converts the IR signals for the GC-IRE; then the GC-IRE filters and serializes the IR data for the RS232 serial port on the GC-100. Finally, the GC100 transmits the serial IR data over the network.
Main Features
- Ideal for digitally capturing IR signals from a Xantech, SpeakerCraft, or Niles IR distribution environment
- Power supply is not required when used with a GC-100, iTach, or Flex
- Supports IR frequencies from 30 kHz-200 kHz
- Optically isolated for circuit isolation and protection
- Cable/Connector; 6' (1.8m), 3.5mm stereo plug
General Information
Name: Global Cache 950-0007 Converter Cable IR to GCIRE
Category: Data Comm & Networking, Network Adapters, Media Converters
UPC Code: 810466010075
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number GL-GCCXG Brand Name Global Cache Manufacturer Part Number 950-0007 Product Model GC-CGX
Color Black
Limited Warranty 2-Year
