Product Overview

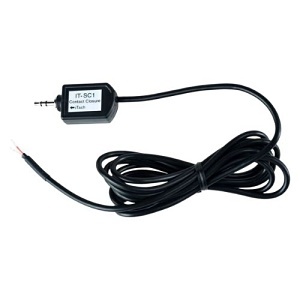

The Global Caché IT-SC1 is a contact closure sensor. Its circuitry provides a rapid response to contact closure (4mS typ) with a slow response to contact opens (75mS typ). This eliminates false triggers due to contact bounce created by mechanical contacts coming together, such as push buttons or relays. The IT-SC1 plugs directly into the iTach WF2IR or IP2IR network adapter IR/Sensor connector port. The iTach connector must be configured as a Sensor_IN or Sensor_Notify. The IT-SC1 is connected directly across the contacts, with the open / close state to be determined. There is no polarity to the wiring. The IT-SC1 requires +5V (supplied by the iTach) to operate and provides a logic level output representing the contact closure state.
Main Features
- Rapid response to contact closure (4mS typical)
- Slow response to contact opens (75mS typical) to prevent false triggers
- Eliminates false triggers due to contact bounce from mechanical contacts
- Plugs directly into iTach WF2IR or IP2IR network adapter IR/Sensor connector port
- Connector must be configured as Sensor_IN or Sensor_Notify
- Connected directly across contacts with open/close state detection
- No polarity required for wiring
- Requires +5V power supplied by iTach
General Information
Name: Global Cache 950-0023 ITACH Contact Closure Sensor
Category: Data Comm & Networking, Network Adapters, Media Converters
UPC Code: 810466010785
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number GL-ITSC1 Brand Name Global Cache Manufacturer Part Number 950-0023 Product Model IT-SC1 Product Series iTach
Color Black
