ICC's EZ Category 6 modular jacks, RJ-45 keystone jacks, is 8-position 8-conductor (8P8C) is engineered to provide superior performance and reliability, supporting Gigabit Ethernet applications and beyond. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA Category 6 performance standards. It offers superior signal quality and noise reduction due to its enhanced Near-End and Far-End Crosstalk cancellation and minimum return losses. The EZ connector's flat back IDC construction offers faster installation through its straight through in-line termination design and one piece snap-on termination cap.
- CAT6 rated connectors provide excellent performance for data networks requiring max speed and bandwidth.
- Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts.
- PCB technology provides maximum performance and superior signal quality.
- Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals.
- Designed with in-line 110 IDC, in-sequence termination reducing termination time.
- Terminate with 110 punch down tool or JackEasy Termination Tool.
- One piece termination cap allows for a quick and easy termination.
- Includes an integrated TIA-568A/B color wiring diagram.
- Backward compatible with all lower rated category components.
- Works with all Work Area Outlets faceplates, inserts, surface mount boxes.
- Used with ICC Category 6 patch cords.
- Exceeds ANSI/TIA-568-C requirements for permanent performances.
- UL 1863 Compliant.

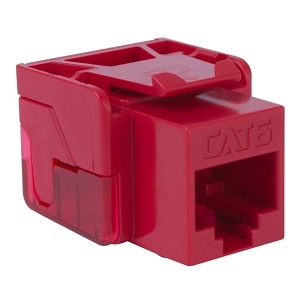

Name : ICC IC1078L6RD CAT6 RJ45 Keystone Jack for EZ Style, Red , ICC
Category : Keystone Jacks
UPC Code : 633758017299
Country of Origin : Taiwan. Country of origin is subject to change.
ADI Part Number : H2-1078L6RD
Brand Name : ICC
Manufacturer : ICC
Manufacturer Part Number : IC1078L6RD
Packaged Quantity : 1
Product Name : CAT6 RJ45 Keystone Jack for EZ Style
Product Type : Network Connector
Connector Details : 1 x RJ-45 Female Keystone
Contact Plating : Gold, Nickel
Connector Type : RJ-45 - Female
Color : Red
Mount Type : Surface Mount
Limited Warranty : 3 Year
Country of Origin : Taiwan
Features : Crosstalk Protection, Far End Cross Talk (FEXT), Flame Retardant, Impact Resistant, Near End Cross Talk (NEXT), PoE++
Package Contents : <ul> <li>1 x CAT6 RJ45 Keystone Jack for EZ Style</li> <li>1 x Wiring Cap</li> </ul>
TAA Compliant : Yes
