ICC ICCABP5EWH CAT5e Network Cable, C5E 350 UTP Solid Cable, 24G, 4-Pair, CMP, 1000', White
ICC ICCABP5EWH CAT5e Network Cable, C5E 350 UTP Solid Cable, 24G, 4-Pair, CMP, 1000', White
ICC ICCABP5EWH CAT5e Network Cable, C5E 350 UTP Solid Cable, 24G, 4-Pair, CMP, 1000', White
ICCABP5EWHÂ |Â H2-CABP5EWH
Please sign in to view pricing and availability and to add to cart.
Product Overview
Overview
ICC's CMR and CMP UTP Solid cables are manufactured based on the TIA 568-C.2 industry standard and are UL and cUL listed and verified. Available in spools of 1000 feet in a convenient EZ pull dispensing carton. Constructed with sequential footage markings on the outer jacket for easy to measure usage tracking. These cables offer a competitive solution designed to provide the ultimate performance necessary for today's demanding voice, data, video, and security applications in commercial and residential installations.
Feature
INDUSTRY STANDARDS
? TIA 568-C.2 Category 5e
? UL Type CM for non-plenum
? UL Type CMP for plenum
? UL 444
APPLICATIONS
? 10 Base-T
? 100Base-T (IEEE 802.3u)
? 1000 Base-T
? High Definition Video
? Digital Broadcast Video/IP Video/VoIP
? ISDN/ADSL
? 155Mbps ATM
? CAT 5e 350 MHz CMP (Plenum) Rated
? Conductor: 24AWG Bare Solid Copper for CAT 5e
? Convenient dispensing via EZ Pull (CAT 5e)
? Sequential footage marking for easy usage tracking.
? ETL Verified for TIA/EIA568-B.2
? ROHS Compliant.
? Available jacket color: Blue
? Wired pairs are vividly colored for quick identification.
? Temperature Rating (°F)
? Installation temperature: 32 to 140 Fahrenheit (°F)
? Operating temperature: -4 to 167 Fahrenheit (°F)
Main Features
- CAT5e 350 UTP Solid Cable, 24AWG, 4-Pair

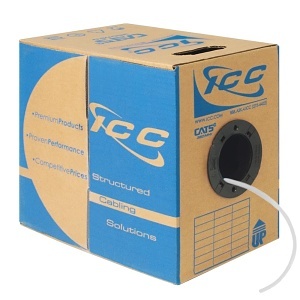

- 1000' length in EZ pull dispensing carton
- Sequential footage markings for easy tracking
- TIA 568-C.2 industry standard compliant
- UL and cUL listed and verified
- Supports 10/100/1000 Base-T and HD video
- Suitable for commercial and residential use
- Plenum rated (CMP) for safety
- ROHS Compliant
- Operating temperature: -4 to 167°F
General Information
Specifications
-
ADI Part Number H2-CABP5EWH Brand Name ICC Manufacturer ICC Manufacturer Part Number ICCABP5EWH Product Model ICCABP5EWH Product Name Cat.5e UTP Cable Product Type Network Cable Â
-
Cable Rating Plenum Cable Type Category 5e Connector on First End Bare Wire Connector on Second End Bare Wire Device Supported Network Device Â
-
Cable Length 1000' Cable Length (mm) 304800 Color Blue, White Â
-
Environmental Certification RoHS Environmentally Friendly Yes Â
