ICC ICCABR5EGY CAT5e 350Mhz Bulk Cable with 24AWG UTP Solid Wires, CMR Jacket, 1000' Pull Box, Gray
ICC ICCABR5EGY CAT5e 350Mhz Bulk Cable with 24AWG UTP Solid Wires, CMR Jacket, 1000' Pull Box, Gray
ICC ICCABR5EGY CAT5e 350Mhz Bulk Cable with 24AWG UTP Solid Wires, CMR Jacket, 1000' Pull Box, Gray
ICCABR5EGYÂ |Â H2-CABR5EGY
Please sign in to view pricing and availability and to add to cart.
Product Overview
Overview

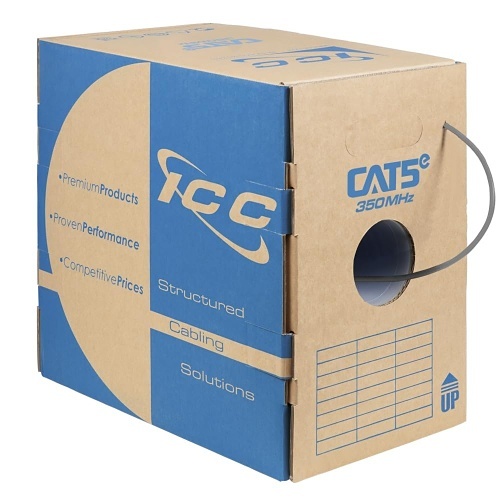

ICC CAT 5e 350 MHz UTP solid cables are manufactured per TIA 568-C.2 industry performance standards and are UL and cUL listed and verified. Available in spools of 1000 ft CMR (Riser) and CMP (Plenum) rated in an EZ pull dispensing carton, and constructed with sequential footage markings on the outer jacket for convenient usage tracking. These cables offer a competitive cable solution designed to provide the performance necessary for today's growing voice, data, video, and security applications in commercial and residential installations. They complete the site cabling system with the value and reliability of ICC.
Feature
? TIA 568-C.2 Category 5e
? UL Type CMR for Riser
? UL 444
APPLICATIONS
? 10 Base-T
? 100Base-T (IEEE 802.3u)
? 1000 Base-T
? High Definition Video
? Digital Broadcast Video/IP Video/VoIP
? ISDN/ADSL
? 155Mbps ATM
? Conductor: Solid Bare Copper
? Component: 4 twisted pair
? Insulation: HDPE
? Insulation Dia.(in): 0.036
? Jacket: FR-PVC
? Outer Dia.(in): 0.189"
? Rip cord pulled under jacket
? Sequential footage marking for easy usage tracking.
? Packaged EZ pull box
? weight: 25.3 lbs.
? Wired pairs are vividly colored for quick identification.
? Temperature Rating (°F)
? Installation temperature: 32 to 140 Fahrenheit (°F)
? Operating temperature: -4 to 167 Fahrenheit (°F)
Main Features
- CAT5e 350MHz UTP solid cables
- Manufactured per TIA 568-C.2 standards
- UL and cUL listed and verified
- Available in 1000 ft CMR and CMP rated spools
- EZ pull dispensing carton with footage markings
- Supports voice, data, video, and security applications
- Solid bare copper conductor with 4 twisted pairs
- FR-PVC jacket with rip cord for easy usage tracking
- Vividly colored wired pairs for quick identification
- Temperature rating: -4 to 167°F operating, 32 to 140°F installation
General Information
Specifications
-
ADI Part Number H2-CABR5EGY Brand Name ICC Manufacturer ICC Manufacturer Part Number ICCABR5EGY Product Model ICCABR5EGY Product Name Cat.5e UTP Cable Product Type Network Cable Â
-
Cable Rating Riser Cable Type Category 5e Connector on First End Bare Wire Connector on Second End Bare Wire Device Supported Network Device Jacket Material PVC Â
-
Cable Length 1000' Cable Length (mm) 304800 Color Gray Material PVC Â
-
Environmental Certification RoHS Environmentally Friendly Yes Â
