Overview

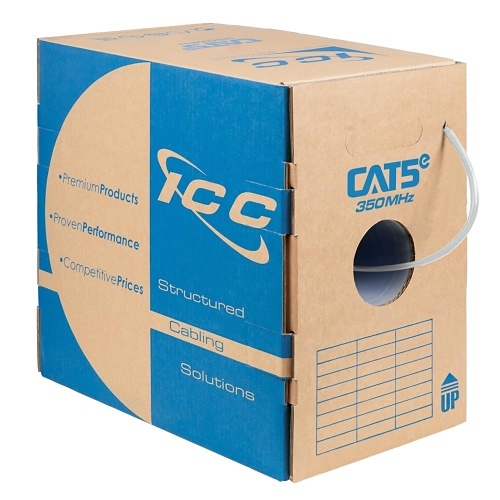

ICC CAT 5e 350 MHz UTP solid cables are manufactured per TIA 568-C.2 industry performance standards and are UL and cUL listed and verified. Available in spools of 1000 ft CMR (Riser) and CMP (Plenum) rated in an EZ pull dispensing carton, and constructed with sequential footage markings on the outer jacket for convenient usage tracking. These cables offer a competitive cable solution designed to provide the performance necessary for today's growing voice, data, video, and security applications in commercial and residential installations. They complete the site cabling system with the value and reliability of ICC.

Feature

? TIA 568-C.2 Category 5e
? UL Type CMR for Riser
? UL 444

APPLICATIONS

? 10 Base-T
? 100Base-T (IEEE 802.3u)
? 1000 Base-T
? High Definition Video
? Digital Broadcast Video/IP Video/VoIP
? ISDN/ADSL
? 155Mbps ATM
? Conductor: Solid Bare Copper
? Component: 4 twisted pair
? Insulation: HDPE
? Insulation Dia.(in): 0.036
? Jacket: FR-PVC
? Outer Dia.(in): 0.189"
? Rip cord pulled under jacket
? Sequential footage marking for easy usage tracking.
? Packaged EZ pull box
? weight: 19.90 lbs.
? Wired pairs are vividly colored for quick identification.
? Temperature Rating (°F)
? Installation temperature: 32 to 140 Fahrenheit (°F)
? Operating temperature: -4 to 167 Fahrenheit (°F)
