ICC ICCABR6EGY CAT6e 600 MHz Bulk Cable with 23AWG UTP Solid Wires, CMR Jacket, 1000' Pull Box, Gray

ICCABR6EGY | H2-CABR6EGY

Sign In for Dealer Pricing

Become an ADI Customer
image of h2-cabr6egy
ICC

ICC ICCABR6EGY CAT6e 600 MHz Bulk Cable with 23AWG UTP Solid Wires, CMR Jacket, 1000' Pull Box, Gray

ICCABR6EGY | H2-CABR6EGY

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Overview

ICC's CMR and CMP UTP Solid cables are manufactured based on the TIA 568-C.2 industry standard and are UL and cUL listed and verified. Available in spools of 1000 feet in a convenient pull box dispensing carton. Constructed with sequential footage markings on the outer jacket for easy to measure usage tracking. These cables offer a competitive solution designed to provide the ultimate performance necessary for today's demanding voice, data, video, and security applications in commercial and residential installations.

Feature

? TIA 568-C.2 Category 6
? UL Type CMR for Riser
? UL 444

APPLICATIONS

? 10 Base-T
? 100Base-T (IEEE 802.3u)
? 1000 Base-T
? High Definition Video
? Digital Broadcast Video/IP Video/VoIP
? ISDN/ADSL
? 155Mbps ATM
? Conductor: Solid Bare Copper
? Insulation: PE
? Jacket: FR-PVC
? Cable spine separator X
? Component: 4 twisted pair
? Insulation Dia.(in): 0.039
? Outer Dia.(in): 0.236"
? Sequential footage marking for easy usage tracking.

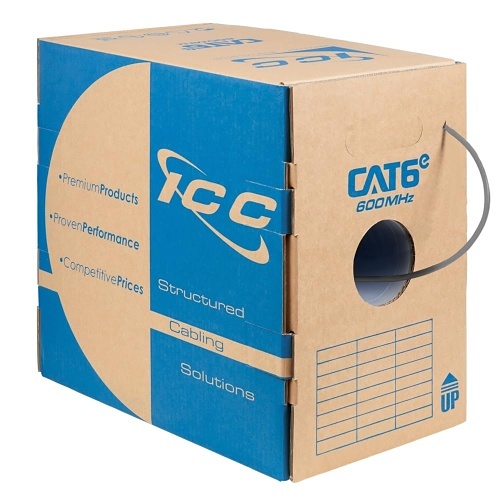

? Packaged in a pull box.
? Wired pairs are vividly colored for quick identification.
? Temperature Rating (°F)
? Installation temperature: 32 to 140 Fahrenheit (°F)
? Operating temperature: -4 to 167 Fahrenheit (°F)

Main Features

General Information

Name: ICC ICCABR6EGY CAT6e 600 MHz Bulk Cable with 23AWG UTP Solid Wires, CMR Jacket, 1000' Pull Box, Gray
Category: ICC, Wire & Cable, Network Cables, Category 6 Network Cables
UPC Code: 633758032070
Country of Origin: Taiwan. Country of origin is subject to change.
