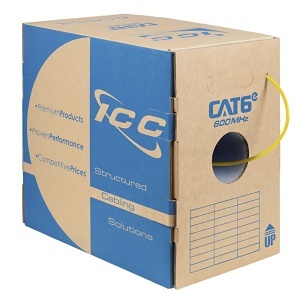

ICC ICCABR6EYL CAT6e CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 600 MHz, UL Certified, 1000' Reelex Pull Box, Yellow
ICCABR6EYL
|H2-CABR6EYL
Shop All ICC
ICC ICCABR6EYL CAT6e CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 600 MHz, UL Certified, 1000' Reelex Pull Box, Yellow
ICCABR6EYL | H2-CABR6EYL
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
ICC's CAT6e UTP unshielded riser cable provides dependable transmission performance, accommodating 1Gb (Gigabit) Ethernet with a 600MHz bandwidth. This cable not only meets but surpasses TIA Alien Crosstalk requirements, holding ETL Verification to the TIA 568.2-D standard for dependable support of high-speed Ethernet applications. Engineered with precision, the cable features a spline that effectively isolates neighboring twisted pairs, reducing Alien Crosstalk interference. With its riser-rated design and an outer diameter of 0.23 inches, it adheres to safety regulations for vertical installations, making it an ideal choice for a variety of settings, including offices and schools. This cable aligns with the TIA-568-C.2 standard, guaranteeing reliable network connectivity while simplifying installation in riser spaces.
Specifications
ADI Part Number H2-CABR6EYL Brand Name ICC Manufacturer ICC Manufacturer Part Number ICCABR6EYL Product Name Category 6e UTP CMR Solid Cable, 1000 Feet Product Type Network Cable
American Wire Gauge 23AWG Cable Rating Riser Cable Type Category 6e Device Supported Network Device Jacket Material PVC Jacket Type CMR, Riser Shielding No Solid or Stranded Solid
Connector Type RJ45
Data Transfer Rate 1 Gbit/s
Cable Length 1000' Color Yellow Insulation Material Polyurethane Package Type Pull Box
Limited Warranty 3-Year
Certifications & Standards ETL, RoHS, TIA, UL Country of Origin TW Environmental Certification California Proposition 65, RoHS Environmentally Friendly Yes Features Attenuation Crosstalk Ratio Far-end (ACR-F), Attenuation to Crosstalk Ratio (ACR), Minimized Near-End Crosstalk (NEXT), Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Near End Crosstalk (PSNEXT)
