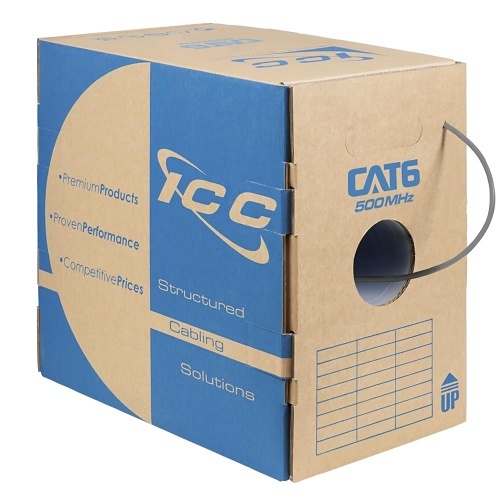

ICC ICCABR6VGY CAT6 CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 500 MHz, UL Certified, 1000' Reelex Pull Box, Gray
ICCABR6VGY
|H2-ICCABR6VG
Shop All ICC
ICC ICCABR6VGY CAT6 CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 500 MHz, UL Certified, 1000' Reelex Pull Box, Gray
ICCABR6VGY | H2-ICCABR6VG
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
CAT6 CABLE: ICC's CAT6 UTP unshielded riser cable provides dependable transmission performance, accommodating 1Gb (Gigabit) Ethernet with a 500MHz bandwidth. This cable not only meets but surpasses TIA Alien Crosstalk requirements, holding ETL Verification to the TIA 568.2-D standard for dependable support of high-speed Ethernet applications. With its riser-rated design and an outer diameter of 0.213 inches, it adheres to safety regulations for vertical installations, making it an ideal choice for a variety of settings, including offices and schools. This cable aligns with the TIA-568-C.2 standard, guaranteeing reliable network connectivity while simplifying installation in riser spaces.
Specifications
ADI Part Number H2-ICCABR6VG Brand Name ICC Manufacturer ICC Manufacturer Part Number ICCABR6VGY Product Name Cat.6 UTP Network Cable Product Type Network Cable
American Wire Gauge 23AWG Cable Rating Riser Cable Type Category 6 Device Supported Network Device Jacket Material FR-PVC Jacket Type Plenum Shielding No Solid or Stranded Solid
TAA Compliant Yes
Connector Type RJ45
Cable Length 1000' Color Gray Insulation Material Fire Resistant Polyethylene (FRPE) Package Type Pull Box Weight 27.55lb
Certifications & Standards ETL, RoHS, TIA, UL Country of Origin TW Environmental Certification RoHS Environmentally Friendly Yes Features Attenuation Crosstalk Ratio Far-end (ACR-F), Attenuation to Crosstalk Ratio (ACR), Minimized Near-End Crosstalk (NEXT), Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Near End Crosstalk (PSNEXT), Unshielded Twisted Pair (UTP)
