Product Overview
ICC's CAT6 unshielded twisted pair (UTP) patch cords exceed all performance requirements up to 550 MHz. They are ETL verified to ANSI/TIA-568-C.2 and UL listed. These patch cords are made from low-profile, snag-free boots for high-density applications. They are available in the most popular stock length and in a variety of colors to easily differentiate connection types.
Features
- 100% Factory Tested, 50 Micro Inch Gold-plated contacts.
- Low Profile boots for high-density applications.
- No width wasted on boot.
- Backward compatible with all lower rated category components.
- Constructed with ultra flexible, EZ release, Snag Free Strain relief.
- Stranded bare 24 AWG copper wire.
- UL listed with 94V-0 rated plugs, CSA, CMG, FT4 Flame rated.
General Information

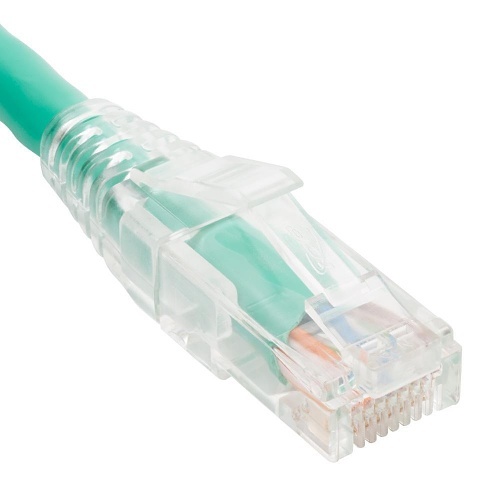

Name : ICC ICPCST14GN CAT6 Clear Boot Patch Cord, 14', Green , ICC
Category : Category 6 Patch Cables
UPC Code : 633758094153
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : H2-PCST14GN
Brand Name : ICC
Manufacturer : ICC
Manufacturer Part Number : ICPCST14GN
Packaged Quantity : 1 Piece
Product Name : CAT6 Clear Boot Patch Cord
Product Type : Network Cable
Technical Information
American Wire Gauge : 24AWG
Cable Characteristic : Patch Cable
Connector on First End : RJ45
Connector on Second End : RJ45
Contact Plating : Gold
Device Supported : Network Device
Jacket Material : CMG
Material : Bare Copper - Wire, High-density Polyethylene (HDPE) - Insulation, Phosphor Bronze - Contact, Polycarbonate - Housing, Polyvinyl Chloride (PVC) - Jacket
Shielding : No
Physical Characteristics
Cable Length (mm) : 4267.2
Color : Green
Miscellaneous
Features : Booted, Flame Resistant, Power-sum Near End Crosstalk (PSNEXT), Snag-free Boot, Strain Relief, Stranded, Ultra Flexible
