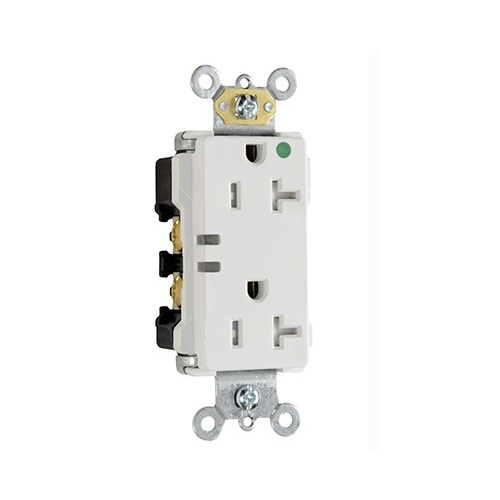

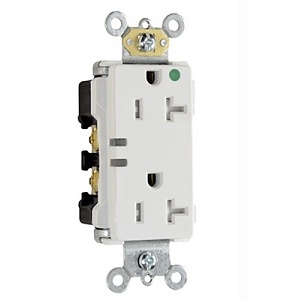

On-Q TR26362-HGPI Extra Heavy Duty Decorator Power Indicating Hospital-Grade Receptacle, 20A 125V
TR26362-HGPI|H4-26362HGPI
On-Q TR26362-HGPI Extra Heavy Duty Decorator Power Indicating Hospital-Grade Receptacle, 20A 125V
TR26362-HGPI|H4-26362HGPI
Key Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
Key Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
On-Q by Legrand
On-Q TR26362-HGPI Extra Heavy Duty Decorator Power Indicating Hospital-Grade Receptacle, 20A 125V
TR26362-HGPI | H4-26362HGPI
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Built for the harshest medical environments, Pass and Seymour power indicating receptacles feature two industry-exclusive green LEDs that offer clear visual assurance of power indication at the receptacleeven with critical equipment plugged into the device. The LEDs operate independently from one another to accommodate split-circuit wiring installations. Tamper-resistant protection comes standard with each receptacle to further enhance safety.
Main Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- 2-Back wire holes for additional wiring flexibility
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face / body assembly
- .032" Thick, brass, triple-wipe power contacts for lasting retention
- 2-Drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
General Information
Name: On-Q TR26362-HGPI Extra Heavy Duty Decorator Power Indicating Hospital-Grade Receptacle, 20A 125V
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number H4-26362HGPI Brand Name On-Q by Legrand Manufacturer Part Number TR26362-HGPI Product Name 20A Extra Heavy Duty Decorator Power Indicating Hospital-Grade Receptacle, Brown Product Type Receptacle
-
Color Brown Depth 0.9" Height 2.75" Width 1.63"
-
Current Rating 20A
-
Country of Origin MX
