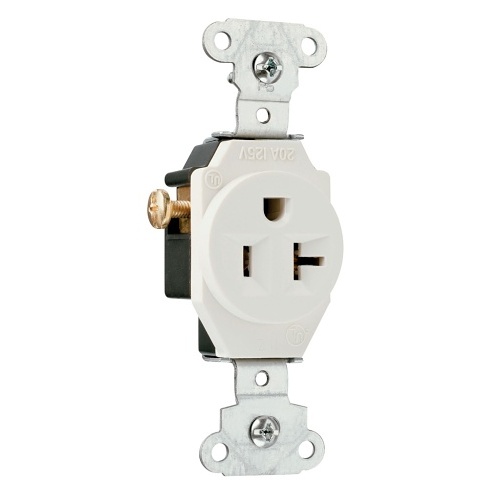

Pass & Seymour 5351-LA Receptacle, Single, 20A, 125V, Side-Wire
5351-LA
|H4-5351LA
Shop all Pass & Seymour by Legrand
Pass & Seymour 5351-LA Receptacle, Single, 20A, 125V, Side-Wire
5351-LA | H4-5351LA
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Heavy-duty spec grade single receptacle side wire 20A 125V.
Main Features
- Auto-ground clip assures positive ground
- Factory-broken split-circuit tab allows for 50% plug load control to be achieved in one duplex receptacle
- Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength
- Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate side wire capability
- 1-Piece brass triple-wire power contacts for lasting retention
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour 5351-LA Receptacle, Single, 20A, 125V, Side-Wire
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007535136
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-5351LA Brand Name Pass & Seymour by Legrand Manufacturer Part Number 5351-LA Product Name 20A 125V Heavy Duty Spec-Grade Single Receptacle, Side Wire, Light Almond Product Type Power Outlet
Color Almond Depth 1.08" Width 1.38"
Current Rating 20A
Limited Warranty 1-Year
Country of Origin MX
