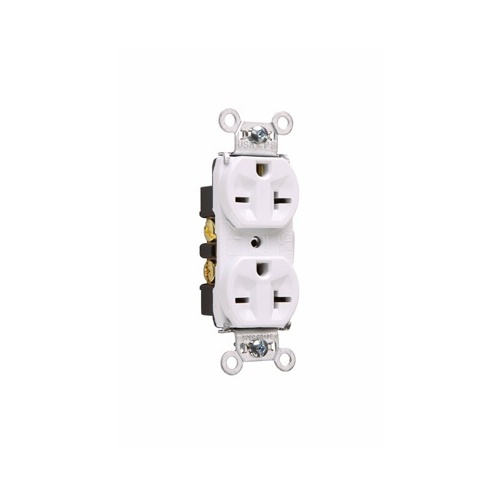

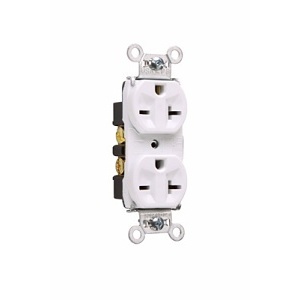

Pass & Seymour 5862-W Duplex Receptacle 20A 250V with Side and Back Wiring, White
5862-W|H4-5862W
Pass & Seymour 5862-W Duplex Receptacle 20A 250V with Side and Back Wiring, White
5862-W|H4-5862W
Key Features
- Heavy-duty, brass strap for added strength and ground conductivity
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Strap tabs wrap around face to prevent strap from separating from face and back body
Key Features
- Heavy-duty, brass strap for added strength and ground conductivity
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Strap tabs wrap around face to prevent strap from separating from face and back body
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Heavy-duty, brass strap for added strength and ground conductivity
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Strap tabs wrap around face to prevent strap from separating from face and back body
Pass & Seymour by Legrand
Pass & Seymour 5862-W Duplex Receptacle 20A 250V with Side and Back Wiring, White
5862-W | H4-5862W
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour 5862-W receptacle by Legrand features a heavy-duty brass strap for enhanced strength and excellent ground conductivity. Its innovative strap tabs wrap securely around the face to prevent separation from the face and back body, ensuring durability. The receptacle includes a convenient break-off, line-contact tab for quick split-circuit wiring. Constructed with a high-strength nylon face, it supports #14 and #10 AWG copper or copper-clad wires through an internal screw-pressure-plate. An auto-ground clip guarantees a reliable ground connection. It operates safely with a maximum temperature rise of 30°C and withstands temperatures from -40°C to 60°C. Upgrade your electrical setup with this dependable, robust receptacle today!
Main Features
- Heavy-duty, brass strap for added strength and ground conductivity
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Strap tabs wrap around face to prevent strap from separating from face and back body
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- High strength nylon face
- Internal screw-pressure-plate back and side wired to accept #14 and #10 AWG stranded or solid copper or copper-clad conductors
- Auto-ground clip assures positive ground
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour 5862-W Duplex Receptacle 20A 250V with Side and Back Wiring, White
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007998405
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number H4-5862W Brand Name Pass & Seymour by Legrand Manufacturer Part Number 5862-W Product Name 20A 250V Heavy Duty Spec-Grade Duplex Receptacle, Back and Side Wire, White Product Type Duplex Receptacle
-
Color White Depth 0.78" Height 2.63" Width 1.32"
-
Current Rating 20A Voltage Rating 250V
-
Certifications & Standards CSA C22.2 No. 42, cULus UL498 Country of Origin MX
