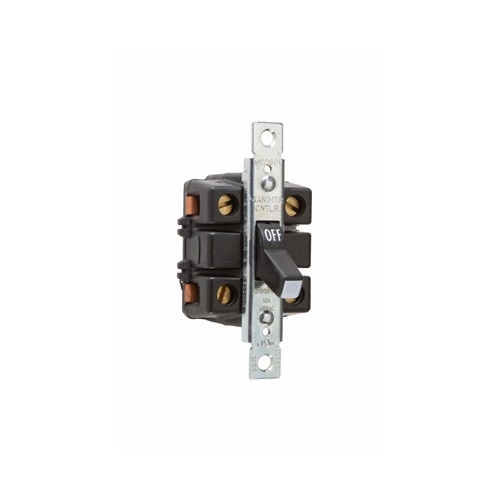

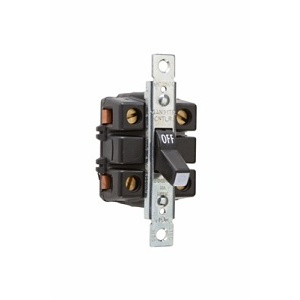

On-Q 7862 2-Pole Manual Control Switch in NEMA 3R Enclosure, 600V
7862|H4-7862
On-Q 7862 2-Pole Manual Control Switch in NEMA 3R Enclosure, 600V
7862|H4-7862
Key Features
- High horsepower rating, up to 3HP for heavy-duty applications
- Compact design provides ease of installation
- Box lug terminals
Key Features
- High horsepower rating, up to 3HP for heavy-duty applications
- Compact design provides ease of installation
- Box lug terminals
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- High horsepower rating, up to 3HP for heavy-duty applications
- Compact design provides ease of installation
- Box lug terminals
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Introducing the On-Q by Legrand 7862 Manual Controller, designed for reliable performance in electrical applications. This robust 60A manual controller operates at 600V, ensuring it meets the demands of your projects with ease. Its two-pole configuration allows for versatile use, making it an essential component for any electrical setup. Whether you're a professional electrician or a DIY enthusiast, this controller provides the durability and efficiency you need. Don't miss out on enhancing your electrical systems with this high-quality product. Order your On-Q 7862 Manual Controller today and experience the difference!
Main Features
- High horsepower rating, up to 3HP for heavy-duty applications
- Compact design provides ease of installation
- Box lug terminals
- Single piece moveable and stationary contact arms with oversized silver cadmium buttons provides excellent continuity and long life
- Made in USA
- Wire pockets and thick wall arc barriers
- Cold-rolled steel NEMA 3R enclosure with polyester urethane finish conforms to OSHA lockout requirements
- Type 3R enclosure has 2-1/2", 3/4" and 1" concentric knockouts on bottom
- Accepts #4AWG, cULus listed
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates
General Information
Name: On-Q 7862 2-Pole Manual Control Switch in NEMA 3R Enclosure, 600V
Category: On-Q by Legrand, Smart Home, Smart Dimmers & Light Switches
UPC Code: 785007078626
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number H4-7862 Brand Name On-Q by Legrand Manufacturer Part Number 7862 Product Line Pass and Seymour Product Name Manual Controllers Product Type Manual Controller
-
Depth 1.66" Height 3.75" Width 1.74"
-
Current Rating 60A Input Voltage 600V
-
Certifications & Standards cULus Country of Origin US Environmental Certification cULus
