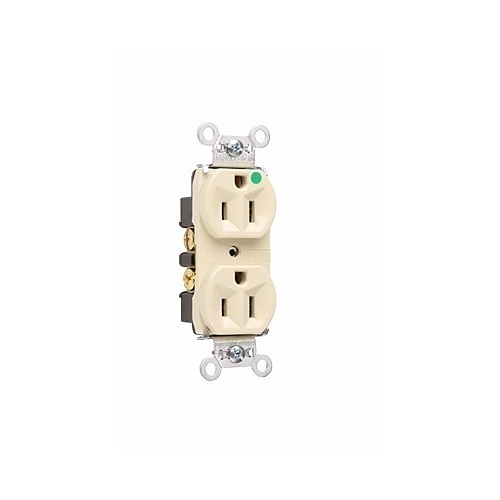

Pass & Seymour 8200-HI Hospital-Grade Duplex Receptacle, 15 Amps, 125 Volts
8200-HI
|H4-8200HI
Shop all Pass & Seymour by Legrand
Pass & Seymour 8200-HI Hospital-Grade Duplex Receptacle, 15 Amps, 125 Volts
8200-HI | H4-8200HI
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour by Legrand 8200-HI is a compact, high-grade duplex receptacle designed for 15A, 125V applications, offering reliable electrical connectivity. It features an impact-resistant nylon face and a corrosion-resistant, zinc-plated steel strap for durability. The one-piece heat-treated triple-wipe brass power contacts ensure a secure electrical connection, complemented by an easily accessible break-off line contact tab for flexible split circuit wiring. Installation is simplified with tri-drive terminal and mounting screws, an auto-ground clip for assured grounding, and the ability to accommodate 14 and 10AWG copper or copper-clad conductors through internal screw-pressure-plate back wire and side wire line terminals. This receptacle is engineered for safety, with a maximum 30°C temperature rise after rigorous overload testing, making it suitable for demanding electrical environments.
Main Features
- Impact-resistant nylon face
- One-piece heat-treated triple-wipe brass power contacts
- Easily accessible break-off line contact connecting tab for split circuit wiring
- Corrosion-resistant, zinc-plated steel strap is locked in
- Internal screw-pressure-plate back wire and side wire line terminals accept 14 and 10AWG copper or copper-clad conductors
- High strength thermoplastic back body
- Auto-ground clip assures positive ground
- Compact design for easy installation
- Tri-drive terminal and mounting screws
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
General Information
Name: Pass & Seymour 8200-HI Hospital-Grade Duplex Receptacle, 15 Amps, 125 Volts
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007820034
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-8200HI Brand Name Pass & Seymour by Legrand Manufacturer Part Number 8200-HI
