Key Features
- Impact-resistant nylon face
- 0.032 inch thick, brass, triple-wipe power contacts for lasting retention
- Easily accessible break-off line contact connecting tab for split circuit wiring
Key Features
- Impact-resistant nylon face
- 0.032 inch thick, brass, triple-wipe power contacts for lasting retention
- Easily accessible break-off line contact connecting tab for split circuit wiring
.jpg)
Key Features
- Impact-resistant nylon face
- 0.032 inch thick, brass, triple-wipe power contacts for lasting retention
- Easily accessible break-off line contact connecting tab for split circuit wiring
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

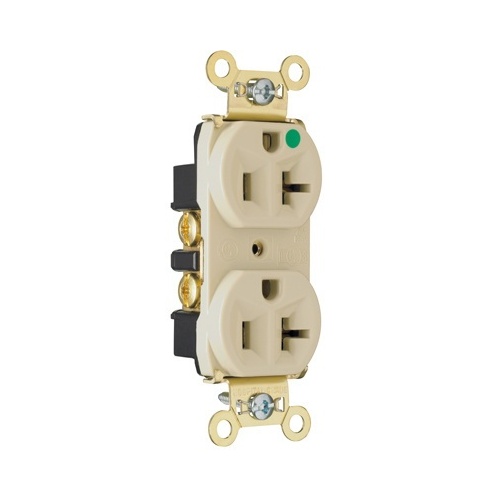

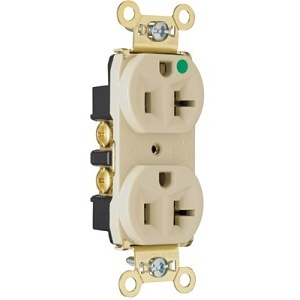

The On-Q 8300-HI Compact HG Duplex Receptacle by Legrand combines durability and efficiency in a compact design. Featuring an impact-resistant nylon face and a corrosion-proof zinc-plated steel strap, it ensures lasting reliability. The brass, triple-wipe power contacts provide secure retention, while the easily accessible break-off line tab supports split circuit wiring. With robust thermoplastic back body, auto-ground clip, and versatile wiring options accommodating #14 to #10 AWG copper wires, installation is straightforward. Built to withstand temperature extremes and overload, this receptacle offers safety and performance. Upgrade your electrical setup with this dependable solution today!
Main Features
- Impact-resistant nylon face
- 0.032 inch thick, brass, triple-wipe power contacts for lasting retention
- Easily accessible break-off line contact connecting tab for split circuit wiring
- Corrosion-resistant, zinc-plated steel strap is locked in
- Internal screw-pressure-plate back wire and side wire line terminals accept #14 : #10 AWG copper or copper-clad conductors
- High strength thermoplastic back body
- Auto-ground clip assures positive ground
- Compact design for easy installation
- Tri-drive terminal and mounting screws
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: On-Q 8300-HI Compact HG Duplex Power Outlet, 20A 125V
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007830033
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number H4-8300HI Brand Name On-Q by Legrand Manufacturer Part Number 8300-HI Product Name 20A 125V Heavy Duty Hospital-Grade Compact Duplex Receptacle, Back and Side Wire, Ivory Product Type Duplex Receptacle
-
Color Ivory Depth 0.78" Height 3.281" Width 1.322"
-
Current Rating 20A Voltage Rating 125V
-
Limited Warranty 1-Year
-
Certifications & Standards UL 498 Country of Origin MX
