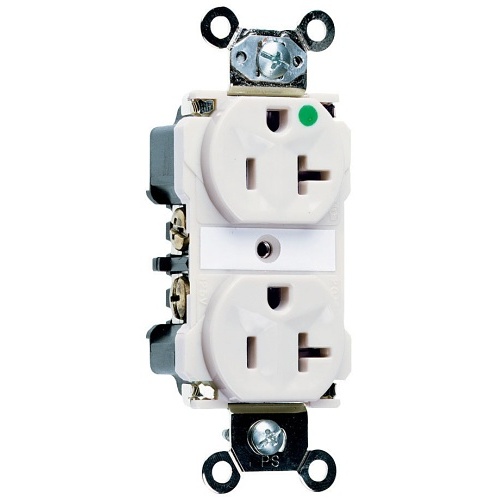

On-Q 8300-W Hospital Grade Duplex Receptacle, 20A/125V AC, Power Outlet
8300-W|H4-8300W
On-Q 8300-W Hospital Grade Duplex Receptacle, 20A/125V AC, Power Outlet
8300-W|H4-8300W
Key Features
- One-piece nickel-plated brass mounting strap with integral ground
- patented shutter system helps prevent improper insertion of foreign objects
- Two drive screws anchor strap to back body and face
Key Features
- One-piece nickel-plated brass mounting strap with integral ground
- patented shutter system helps prevent improper insertion of foreign objects
- Two drive screws anchor strap to back body and face
.jpg)
Key Features
- One-piece nickel-plated brass mounting strap with integral ground
- patented shutter system helps prevent improper insertion of foreign objects
- Two drive screws anchor strap to back body and face
On-Q by Legrand
On-Q 8300-W Hospital Grade Duplex Receptacle, 20A/125V AC, Power Outlet
8300-W | H4-8300W
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The On-Q 8300-W Hospital Grade Duplex Receptacle offers a durable and reliable power solution with a one-piece nickel-plated brass mounting strap equipped with an integral ground. Its patented shutter system prevents the incorrect insertion of foreign objects, ensuring safety. Two drive screws secure the strap firmly, while a circuit label on the face provides permanent identification. Nickel-plated brass triple-wipe power contacts promise lasting retention. Installation is simplified with easily accessible break-off tabs and oversized tri-drive head screws. External screw-pressure-plate back wire clamps guarantee a secure connection. Compatible with various wall plate options, this receptacle combines convenience and safety for your electrical needs. Upgrade your electrical setup with this dependable receptacle today!
Main Features
- One-piece nickel-plated brass mounting strap with integral ground
- patented shutter system helps prevent improper insertion of foreign objects
- Two drive screws anchor strap to back body and face
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- 0.040 inch thick, nickel-plated brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Oversized #10 deep tri-drive head brass terminal and ground screws
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- External nickel-plated screw-presure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
General Information
Name: On-Q 8300-W Hospital Grade Duplex Receptacle, 20A/125V AC, Power Outlet
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007830118
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number H4-8300W Brand Name On-Q by Legrand Manufacturer Part Number 8300-W Product Name 20A 125V Extra Heavy Duty Hospital-Grade Duplex Receptacle, Back and Side Wire, White Product Type Duplex Receptacle
-
Color White Depth 0.866" Height 2.75" Width 1.625"
-
Current Rating 20A Voltage Rating 125V
-
Limited Warranty 1-Year
-
Certifications & Standards CSA C22.2 No. 42, cULus UL498 Country of Origin MX
