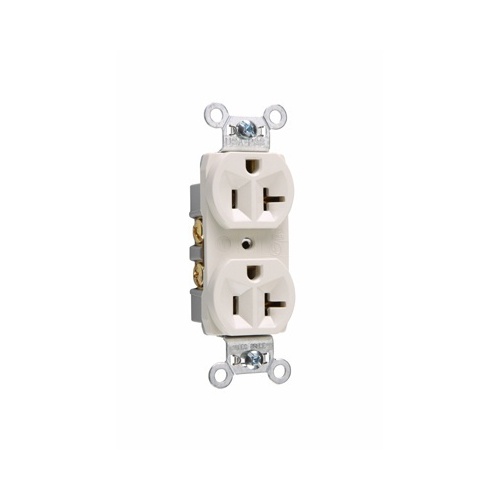

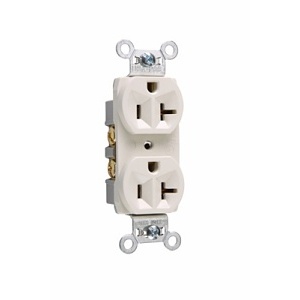

Pass & Seymour CR20-LA Commercial Receptacle, 20A, 125V
CR20-LA
|H4-CR20LA
Shop all Pass & Seymour by Legrand
Pass & Seymour CR20-LA Commercial Receptacle, 20A, 125V
CR20-LA | H4-CR20LA
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Commercial spec grade duplex receptacle, side wire 20A 125V.
Main Features
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face / body assembly
- .032" Thick, brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Impact-resistant nylon face and thermoplastic back body
- Accepts #14-#10AWG solid or stranded copper or copper-clad wire
- Terminal compartments isolated from each other for positive conductor containment
- Auto-ground clip assures positive ground
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature; Maximum continuous 50°C, minimum -40°C without impact
General Information
Name: Pass & Seymour CR20-LA Commercial Receptacle, 20A, 125V
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007608045
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-CR20LA Brand Name Pass & Seymour by Legrand Manufacturer Part Number CR20-LA Product Name 20A 125V Commercial Spec-Grade Duplex Receptacle, Side Wire, Light Almond Product Type Power Outlet
Color Almond Depth 0.78" Height 2.63" Width 1.32"
Current Rating 20A
Limited Warranty 1-Year
Country of Origin MX Environmentally Friendly Yes
