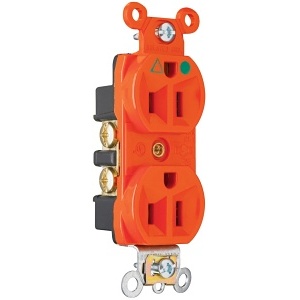

Pass & Seymour IG8200 Power Outlet, Duplex Receptacle, 15A 125V, Orange
IG8200
|H4-IG8200
Shop all Pass & Seymour by Legrand
Pass & Seymour IG8200 Power Outlet, Duplex Receptacle, 15A 125V, Orange
IG8200 | H4-IG8200
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The On-Q IG8200 HG IG DUP RECEPT 15A 125V ORA from Pass & Seymour by Legrand is an isolated ground duplex receptacle designed for safety and reliability in electrical installations. It features IG symbol and Isolated Ground markings for easy circuit identification, triple-wipe brass contacts for lasting positive connectivity, and a high-impact resistant nylon face that resists impacts and scrapes. The corrosion-resistant plated steel strap enhances durability, while the patented external screw-pressure-plate back wire clamp on the ground terminal enables faster installation. Additional features include a plastic barrier isolating the grounding terminal from the mounting strap and metal boxes, side and internal screw-pressure-plate back wire capability compatible with #14 - #10 AWG copper or copper-clad wires, and an auto-ground clip that ensures a positive ground connection.
Main Features
- IG symbol and Isolated Ground markings for easy identification and circuit delineation
- Triple-wipe brass contacts ensure lasting, positive contact with plug blades
- High-impact resistant nylon face resists impacts and scrapes
- Corrosion-resistant plated steel strap
- Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- Plastic barrier isolates grounding terminal from mounting strap and metal boxes
- Side and internal screw-pressure-plate back wire capability with #14 - #10 AWG copper or copper-clad, solid or stranded wire
- Auto-ground clip assures positive ground
General Information
Name: Pass & Seymour IG8200 Power Outlet, Duplex Receptacle, 15A 125V, Orange
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007820454
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-IG8200 Brand Name Pass & Seymour by Legrand Manufacturer Part Number IG8200 Product Name Isolated Ground Heavy Duty Hospital Grade Receptacles, Back and Side Wire, 15A, 125V, Orange Product Type Hospital Grade Receptacle
Color Orange Depth 0.922" Height 2.63" Width 1.32"
Current Rating 15A Voltage Rating 125V
Certifications & Standards CSA C22.2 No. 42, UL498 Country of Origin MX Environmental Certification UL94 V2
