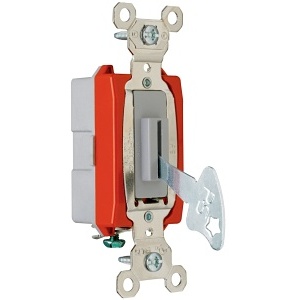

On-Q PS20AC1-L Wall Switch, 1-Pole Switch Type 20A, 120/277VAC
PS20AC1-L|H4-PS20AC1L
On-Q PS20AC1-L Wall Switch, 1-Pole Switch Type 20A, 120/277VAC
PS20AC1-L|H4-PS20AC1L
Key Features
- External screw-pressure-plate back and side wired, Accepts 14 - 10 AWG copper or copper-clad conductors
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce
- Cam controls fast "make" and positive "break" to minimize arcing
Key Features
- External screw-pressure-plate back and side wired, Accepts 14 - 10 AWG copper or copper-clad conductors
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce
- Cam controls fast "make" and positive "break" to minimize arcing
Key Features
- External screw-pressure-plate back and side wired, Accepts 14 - 10 AWG copper or copper-clad conductors
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce
- Cam controls fast "make" and positive "break" to minimize arcing
On-Q by Legrand
On-Q PS20AC1-L Wall Switch, 1-Pole Switch Type 20A, 120/277VAC
PS20AC1-L | H4-PS20AC1L
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
1-Pole lock switch, back and side-wire, 20A 120/277V.
Main Features
- External screw-pressure-plate back and side wired, Accepts 14 - 10 AWG copper or copper-clad conductors
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce
- Cam controls fast "make" and positive "break" to minimize arcing
- Heavy-duty bumper pads for quiet operation
- High strength thermoplastic polycarbonate toggle
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
- Oversized silver alloy contacts for long life and better heat dissipation
- Grounding terminal is standard
- Shallow design for ease of installation
General Information
Name: On-Q PS20AC1-L Wall Switch, 1-Pole Switch Type 20A, 120/277VAC
Category: On-Q by Legrand, Smart Home, Smart Dimmers & Light Switches
UPC Code: 785007195613
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number H4-PS20AC1L Brand Name On-Q by Legrand Manufacturer Part Number PS20AC1-L Product Name Industrial Extra Heavy Duty Specification Grade Lock Switch Back and Side Wire, Gray Product Type Switch
-
Application/Usage Industrial Color Gray Depth 1.073" Height 2.38" Width 1.32"
-
Current Rating 20A Input Voltage 120-277V AC
-
Certifications & Standards FEDSPEC, UL 498/20 Country of Origin MX Environmental Certification FEDSPEC, UL 498/20
