On-Q PS20FBR Series 16 In-Line Connector, Female Cam-Type Plug, 400A 600V, Red
PS20-FBR|H4-PS20FBR
On-Q PS20FBR Series 16 In-Line Connector, Female Cam-Type Plug, 400A 600V, Red
PS20-FBR|H4-PS20FBR
Key Features
- Thermoplastic elastomer housing for outstanding impact and chemical resistance
- Exceptional seal for maintaining NEMA Type 3R and 4 integrity
- Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product
Key Features
- Thermoplastic elastomer housing for outstanding impact and chemical resistance
- Exceptional seal for maintaining NEMA Type 3R and 4 integrity
- Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product
.jpg)
Key Features
- Thermoplastic elastomer housing for outstanding impact and chemical resistance
- Exceptional seal for maintaining NEMA Type 3R and 4 integrity
- Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product
On-Q by Legrand
On-Q PS20FBR Series 16 In-Line Connector, Female Cam-Type Plug, 400A 600V, Red
PS20-FBR | H4-PS20FBR
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

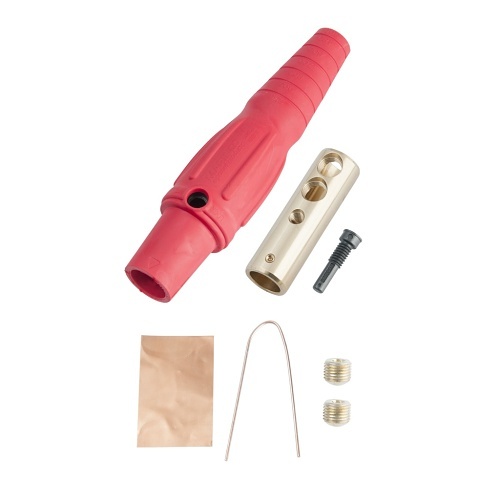

400A 600V, Cable size #2 - 2/0, female cam-type plug.
Main Features
- Thermoplastic elastomer housing for outstanding impact and chemical resistance
- Exceptional seal for maintaining NEMA Type 3R and 4 integrity
- Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product
- Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity
- Heavy-duty hex set screws allow greater termination torque
- Copper wire provides quality strain relief
- Copper shim bundles wire strands to reduce "splaying"
General Information
Name: On-Q PS20FBR Series 16 In-Line Connector, Female Cam-Type Plug, 400A 600V, Red
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Power Plugs
UPC Code: 785007308129
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number H4-PS20FBR Brand Name On-Q by Legrand Manufacturer Part Number PS20-FBR Product Line Pass and Seymour Product Name Series 16 In-Line Connectors Product Series Series 16 Product Type Connector
-
American Wire Gauge 2AWG
-
Color Red
-
Voltage Rating 600V
-
Country of Origin MX Environmental Certification CSA, UL
