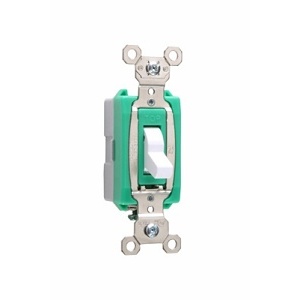

Pass & Seymour PS30AC1-W 30A 120/277V AC Branch and Socket Wire, Single Pole Switch, White
PS30AC1-W
|H4-PS30AC1W
Shop all Pass & Seymour by Legrand
Pass & Seymour PS30AC1-W 30A 120/277V AC Branch and Socket Wire, Single Pole Switch, White
PS30AC1-W | H4-PS30AC1W
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The On-Q PS30AC1-W 30A 120/277VAC B+S WIRE SP SW by Pass & Seymour by Legrand is a heavy-duty electrical switch designed for reliable performance and longevity. It features an external screw-pressure-plate back and side wiring accepting #14 - #10 AWG copper or copper-clad conductors, alongside a heavy-gauge one-piece copper alloy contact arm that reduces contact bounce. The cam mechanism ensures fast "make" and positive "break" actions to minimize arcing, while oversized silver alloy contacts enhance heat dissipation and contact life. Built with high-strength thermoplastic polycarbonate toggle, a glass-reinforced nylon back body, and heavy-duty bumper pads for quiet operation, it also includes a grounding terminal and a shallow design to facilitate installation.
Main Features
- External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce
- Cam controls fast ''make'' and positive ''break'' to minimize arcing
- Heavy-duty bumper pads for quiet operation
- High strength thermoplastic polycarbonate toggle
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
- Oversized silver alloy contacts for long life and better heat dissipation
- Grounding terminal is standard
- Shallow design for ease of istallation
General Information
Name: Pass & Seymour PS30AC1-W 30A 120/277V AC Branch and Socket Wire, Single Pole Switch, White
Category: Pass & Seymour by Legrand, Smart Home, Smart Dimmers & Light Switches
UPC Code: 785007704754
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-PS30AC1W Brand Name Pass & Seymour by Legrand Manufacturer Part Number PS30AC1-W Product Name Industrial Extra Heavy Duty Specification Grade Switch, White Product Type Switch
Color White Depth 1.073" Height 3.28" Width 1.32"
Current Rating 30A Power Rating 1W
Certifications & Standards UL 20 Country of Origin MX
