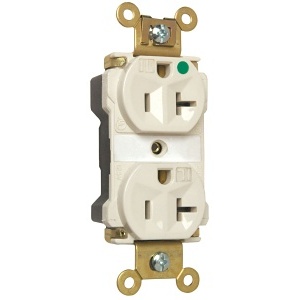

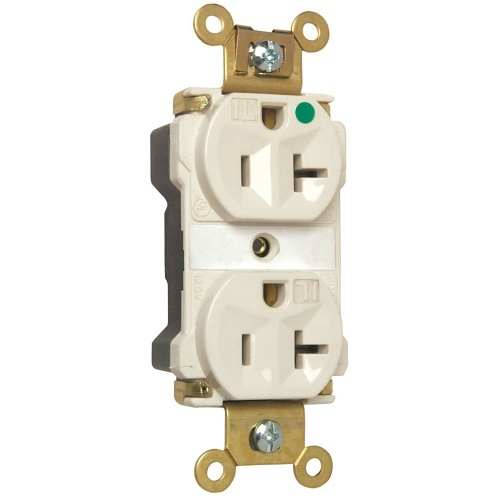

On-Q PT8300-ILLA Hospital Grade Illuminated Duplex, Receptacle, Edge, 20A/125V, Light Almond
PT8300-ILLA|H4-PT8300ILL
On-Q PT8300-ILLA Hospital Grade Illuminated Duplex, Receptacle, Edge, 20A/125V, Light Almond
PT8300-ILLA|H4-PT8300ILL
Key Features
- Molded-in ''IL'' markings on face of product
- Efficient, 15.5W power supply for fast charging of mobile phones and tablets
- Exclusive patented feature, circuit label on face allows permanent circuit identification
Key Features
- Molded-in ''IL'' markings on face of product
- Efficient, 15.5W power supply for fast charging of mobile phones and tablets
- Exclusive patented feature, circuit label on face allows permanent circuit identification
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Molded-in ''IL'' markings on face of product
- Efficient, 15.5W power supply for fast charging of mobile phones and tablets
- Exclusive patented feature, circuit label on face allows permanent circuit identification
On-Q by Legrand
On-Q PT8300-ILLA Hospital Grade Illuminated Duplex, Receptacle, Edge, 20A/125V, Light Almond
PT8300-ILLA | H4-PT8300ILL
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
PlugTail Extra Heavy-Duty Hospital Grade Illuminated Receptacles, 20A, 125V PlugTail devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Main Features
- Molded-in ''IL'' markings on face of product
- Efficient, 15.5W power supply for fast charging of mobile phones and tablets
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- 0.036 inch thick, brass, triple-wipe power contacts for lasting retention
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- No exposed terminals create a finger safe application before, during, and after installation
- Crimped and welded contacts
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing
- Large brass contacts snugly terminate on device blade terminals
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: On-Q PT8300-ILLA Hospital Grade Illuminated Duplex, Receptacle, Edge, 20A/125V, Light Almond
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number H4-PT8300ILL Brand Name On-Q by Legrand Manufacturer Part Number PT8300-ILLA Product Name PlugTail 20A 125V Extra Heavy Duty Hospital-Grade LED Illuminated Face Duplex Receptacle, Light Almond Product Type Duplex Receptacle
-
Color Almond Depth 0.856" Height 2.75" Width 1.63"
-
Current Rating 20A Voltage Rating 125V
-
Certifications & Standards UL 498 Country of Origin MX
