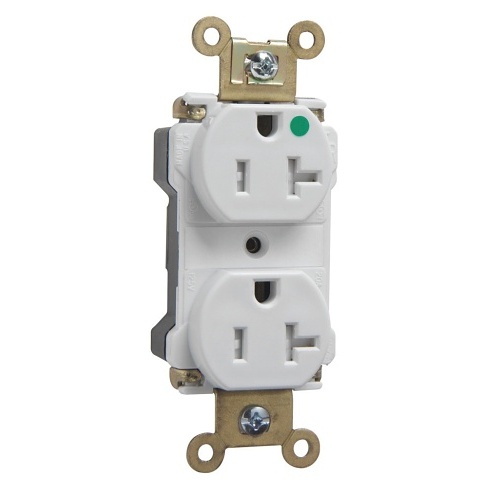

On-Q PTTR63-HW PlugTail Extra Heavy-Duty Hospital Grade Tamper-Resistant Receptacles, 20A, 125V, White
PTTR63-HW|H4-PTTR63HW
On-Q PTTR63-HW PlugTail Extra Heavy-Duty Hospital Grade Tamper-Resistant Receptacles, 20A, 125V, White
PTTR63-HW|H4-PTTR63HW
Key Features
- 0.036 inch thick, brass, triple-wipe power contacts for lasting retention
- Available in 'SP' series in Standard, Junior-Jumbo, and Jumbo sizes
- No exposed terminals create a finger safe application before, during, and after installation
Key Features
- 0.036 inch thick, brass, triple-wipe power contacts for lasting retention
- Available in 'SP' series in Standard, Junior-Jumbo, and Jumbo sizes
- No exposed terminals create a finger safe application before, during, and after installation
Key Features
- 0.036 inch thick, brass, triple-wipe power contacts for lasting retention
- Available in 'SP' series in Standard, Junior-Jumbo, and Jumbo sizes
- No exposed terminals create a finger safe application before, during, and after installation
On-Q by Legrand
On-Q PTTR63-HW PlugTail Extra Heavy-Duty Hospital Grade Tamper-Resistant Receptacles, 20A, 125V, White
PTTR63-HW | H4-PTTR63HW
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
PlugTail Extra Heavy-Duty Hospital Grade Tamper-Resistant Receptacles, 20A, 125V PlugTail devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Main Features
- 0.036 inch thick, brass, triple-wipe power contacts for lasting retention
- Available in 'SP' series in Standard, Junior-Jumbo, and Jumbo sizes
- No exposed terminals create a finger safe application before, during, and after installation
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
- Crimped and welded contacts
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails
- Auto-ground clip assures positive ground
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: On-Q PTTR63-HW PlugTail Extra Heavy-Duty Hospital Grade Tamper-Resistant Receptacles, 20A, 125V, White
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code: 785007860603
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number H4-PTTR63HW Brand Name On-Q by Legrand Manufacturer Part Number PTTR63-HW Product Name PlugTail 20A 125V Extra Heavy Duty Hospital-Grade Tamper-Resistant Duplex Receptacle, White Product Type Duplex Receptacle
-
Receptacle Type Tamper-Resistant
-
Color White Depth 0.9" Height 3.28" Width 1.63"
-
Current Rating 20A Voltage Rating 125V
-
Certifications & Standards cULus UL498 Country of Origin MX
