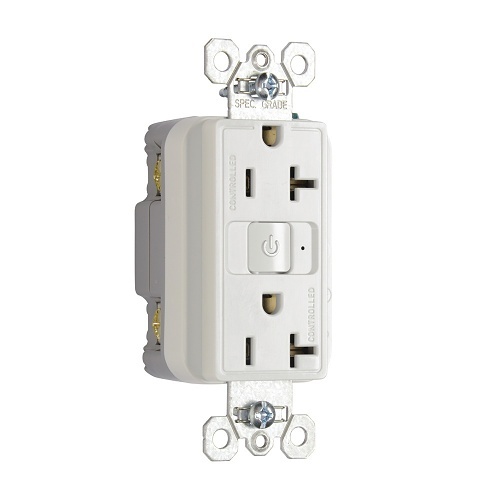

Pass & Seymour RF26352CD-W Plugload RF Receiver 20A Dual Control, White
RF26352CD-W|H4-RF26352CD
Pass & Seymour RF26352CD-W Plugload RF Receiver 20A Dual Control, White
RF26352CD-W|H4-RF26352CD
Key Features
- Wireless control of plug load via RF communication and integral relay
- Available in 'TP' series, extra 3/16" width and height than Standard size plates; and 'TPJ' series, extra 3/16" width and height than Junior-Jumbo size plates
- Product meets requirements of UL498B; Receptacles with integral switching means
Key Features
- Wireless control of plug load via RF communication and integral relay
- Available in 'TP' series, extra 3/16" width and height than Standard size plates; and 'TPJ' series, extra 3/16" width and height than Junior-Jumbo size plates
- Product meets requirements of UL498B; Receptacles with integral switching means
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Wireless control of plug load via RF communication and integral relay
- Available in 'TP' series, extra 3/16" width and height than Standard size plates; and 'TPJ' series, extra 3/16" width and height than Junior-Jumbo size plates
- Product meets requirements of UL498B; Receptacles with integral switching means

Pass & Seymour by Legrand
Pass & Seymour RF26352CD-W Plugload RF Receiver 20A Dual Control, White
RF26352CD-W | H4-RF26352CD
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Energy savings and code compliance can be easily achieved through automatic plug load control via wireless RF communication between the Plug Load RF Signal Pack (RFP) and the Plug Load RF Receptacle.
Main Features
- Wireless control of plug load via RF communication and integral relay
- Available in 'TP' series, extra 3/16" width and height than Standard size plates; and 'TPJ' series, extra 3/16" width and height than Junior-Jumbo size plates
- Product meets requirements of UL498B; Receptacles with integral switching means
- Binding button on face also serves as a manual override
- Simple, 3-step binding process for wireless communication with RF Single Pack
- Corrosion-resistant plated steel strap locked into face and back body to resist pulling away from face / body assembly
- .032" Think, brass, triple-wipe power contacts for lasting retention
- LED Indicator Light on the receptacle guides binding process and indicated power to the receptacle
- Permanently molded face offers clear identification of controlled receptacle for end users
General Information
Name: Pass & Seymour RF26352CD-W Plugload RF Receiver 20A Dual Control, White
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number H4-RF26352CD Brand Name Pass & Seymour by Legrand Manufacturer Part Number RF26352CD-W Product Name 20A 125V Fed Spec-Grade Plug Load RF Dual-Control Duplex Receptacle, White Product Type Power Outlet
-
Color White Depth 1.25" Height 2.68" Width 1.73"
-
Current Rating 20A
-
Country of Origin CN
