Pass & Seymour TR26361-LA Decorator Receptacle Single Tamper Resistant 20A/125V Latching, Amber
TR26361-LA
|H4-TR26361LA
Shop all Pass & Seymour by Legrand
Pass & Seymour TR26361-LA Decorator Receptacle Single Tamper Resistant 20A/125V Latching, Amber
TR26361-LA | H4-TR26361LA
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

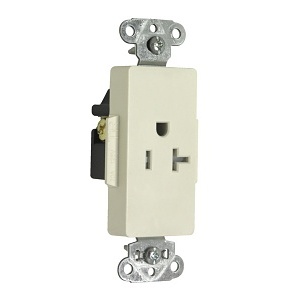

The Pass & Seymour TR26361-LA DECO REC single tamper-resistant 20A receptacle features a dual mechanical shutter system to prevent foreign object insertion, enhancing safety. Two drive screws securely anchor the steel strap to the back and face, providing robust resistance against abrupt removal. Installation is simplified with backed-out tri-drive brass terminal screws and an easily accessible break-off line-contact connecting tab for quick split-circuit wiring. The receptacle supports versatile wiring with internal screw-pressure-plate back and side wire capability and two back wire holes. Its 0.032" thick brass triple-wipe power contacts ensure reliable connectivity. This durable device operates efficiently within a temperature range of -40°C to 60°C and maintains a maximum 30°C temperature rise at full load after 50 overload cycles. Upgrade your electrical setup with this dependable and safety-focused receptacle today!
Main Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Two drive screws anchor strap to back body and face where abrupt removal torque is greatest
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- 0.032 inch thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour TR26361-LA Decorator Receptacle Single Tamper Resistant 20A/125V Latching, Amber
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007004892
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR26361LA Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR26361-LA Product Name 20A 125V Spec-Grade Tamper-Resistant Decorator Duplex Receptacle, Back and Side Wire, Light Almond Product Type Duplex Receptacle
Receptacle Type Tamper-Resistant
Color Almond Depth 1.188" Height 2.63" Width 1.32"
Current Rating 20A Voltage Rating 125V
Certifications & Standards CSA C22.2 No. 42, UL498 Country of Origin MX Environmental Certification UL94 V2
