Pass & Seymour TR5262-BK Power Outlet, Tamper-Resistant Duplex Receptacle, 15A, 125V, Black
TR5262-BK
|H4-TR5262BK
Shop all Pass & Seymour by Legrand
Pass & Seymour TR5262-BK Power Outlet, Tamper-Resistant Duplex Receptacle, 15A, 125V, Black
TR5262-BK | H4-TR5262BK
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

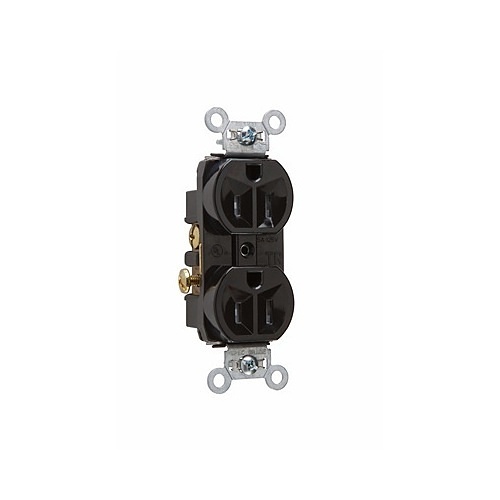

The On-Q TR5262-BK is a dual receptacle outlet designed for 15A/125V AC service, offered by Pass & Seymour by Legrand. It features a dual mechanical shutter system for enhanced safety by helping to prevent the insertion of foreign objects. The device includes backed-out tri-drive brass terminal screws and an easily accessed break-off line-contact connecting tab to facilitate fast and simple installation and split-circuit wiring. Additional wiring flexibility is provided through internal screw-pressure-plate back and side wire capability, two back wire holes, and robust .032" thick brass triple-wipe power contacts, with two drive screws anchoring the steel strap for increased durability against abrupt removal torque.
Main Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- AC receptacles available in 15 and 20A, 125V
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- .032" thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
General Information
Name: Pass & Seymour TR5262-BK Power Outlet, Tamper-Resistant Duplex Receptacle, 15A, 125V, Black
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007243772
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR5262BK Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR5262-BK
