Product Overview
The 60 Series cameras are a perfect fit for dealers who are looking to sell simple, larger enterprise solutions to the compliant marketplace. The solution fits enterprise and critical applications where compliance is essential, such as Government, Utilities, Premium, Commercial, Retail, Campuses...
General Information
Name : Honeywell HC60W35R2 60 Series 5MP Indoor WDR IR IP Dome Camera, 2.7-13.5mm Lens, Lyric White , Honeywell Commercial Security
Category : Dome Cameras
UPC Code : 886618404917
Country of Origin : Taiwan. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : HC60W35R2
Brand Name : Honeywell Commercial Security
Connectivity Technology : Wired
Manufacturer : Honeywell International, Inc
Manufacturer Part Number : HC60W35R2
Product Line : 60 Series
Product Model : HC60W35R2
Product Name : 5MP Network TDN WDR IR Indoor Dome Camera
Product Series : 60
Product Type : Network Camera
Weight (Approximate) (g) : 580
Technical Information
Effective Camera Resolution : 5MP
Field of View : H: 100° ~ 30°, V: 72° ~ 23°
HD Recording : Yes
Lens Type : Varifocal
Maximum Aperture : f/1.4
Maximum Focal Length (mm) : 13.5
Maximum Frame Rate : 60 fps
Minimum Focal Length : 2.7 mm
Night Vision : Yes
Night Vision Type : Infrared
Number of IR LEDs : 4
Optical Zoom : 5x
Video Signal Format : NTSC, PAL
Camera
Night Vision Distance : 98.43 ft
Night Vision Distance (mm) : 30000
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 5000000
Maximum Video Resolution : 2560 x 1920
Minimum Illumination (lux) : 0
Environmental Conditions
Maximum Operating Temperature : 140°F (60°C)
Maximum Operating Temperature (°F) : 140
Minimum Operating Temperature : 14°F (-10°C)
Minimum Operating Temperature (°F) : 14
Operating Humidity : 90%
Exposure
Longest Shutter Speed : 1/30 Second
Minimum Illumination : 0 lux
Shortest Shutter Speed : 1/32000 Second
Interfaces/Ports
Network (RJ-45) : yes
Lens
Focal Length : 2.7-13.5 mm
Lens Included : Yes
Maximum Focal Length : 13.5 mm
Minimum Aperture : f/2.8
Physical Characteristics
Color : White

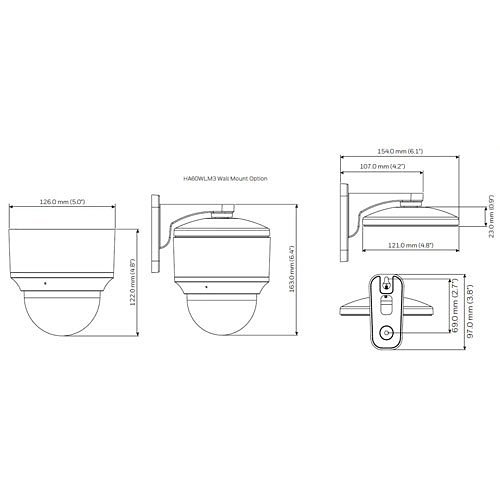

Diameter (mm) : 126
Durability : Impact Resistant
Form Factor : Dome
Height : 4.8"
Height (mm) : 122
Weight (Approximate) : 1.28 lb
Power Description
Input Voltage : 12V DC, 24V AC
Input Voltage (V AC) : 24
Input Voltage (V DC) : 12
Product Information
Diameter : 5"
Mount Type : Flush Mount, In-ceiling, Wall Mount
Projection Lens
Minimum Focal Length (mm) : 2.7
Storage
Recording Formats : HD
Storage Type : Memory Card
Video
Maximum Frame Rate (fps) : 60
Miscellaneous
Environmental Certification : ROHS
Environmentally Friendly : Yes
Features : 3D Digital Noise Reduction, Automatic White Balance, Back Light Compensation (BLC), Built-in Microphone, Cross Line Detection, Day/Night, Gain Control, Highlight Compensation (HLC), Motion detection, Password Protection, Privacy Masking, Region of Interest, SD Card Local Storage, Wide Dynamic Range
Impact Protection Rating : IK10
Indoor/Outdoor : Indoor
Ingress Protection Rating : IP52
TAA Compliant : yes
