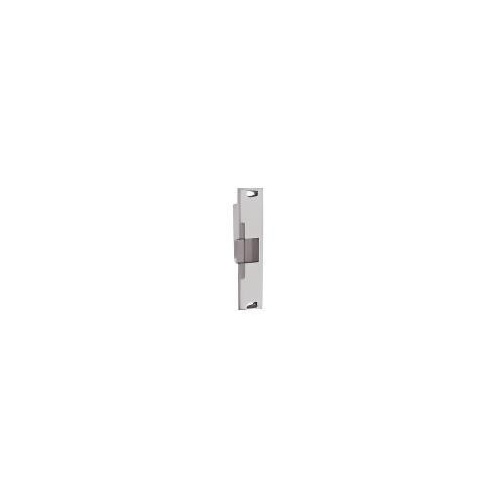

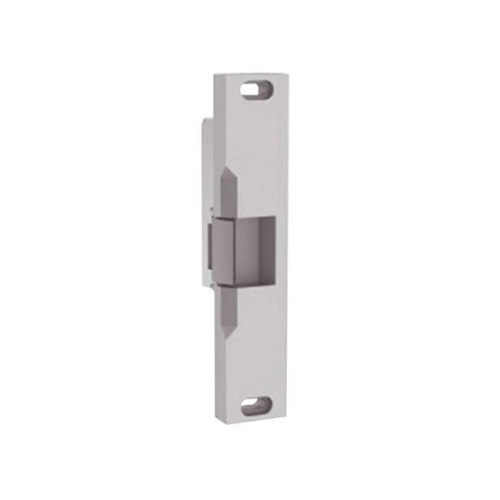

HES 18103759 Electric Strike, 310-4-24D-630-LCBMA
310-4-24D-630-LCBMA
|HE-030033759
Shop all HES by ASSA ABLOY
HES 18103759 Electric Strike, 310-4-24D-630-LCBMA
310-4-24D-630-LCBMA | HE-030033759
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The all stainless steel construction of the 310-4 Series makes it ideal for high abuse applications that would disable other electric strikes. The Folger Adam 310-4 Series has a unique 3/4" face plate with an integrated 1/4" base shim that can be removed in the field to accommodate rim exit devices with a 1/2" or 3/4" throw latchbolt.
Main Features
- Integrated shim for quick customization of faceplate thickness (1/2" to 3/4")
- Tamper resistant, heavy duty construction
- Constructed entirely of stainless steel for strength and corrosion resistance
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance rating 1,000,000 cycles
- Integrated ramps for better deadlatch handling
- Set screws for horizontal lockdown
- In-frame horizontal adjustability
- Wider faceplate (1-3/4") for greater versatility
General Information
Name: HES 18103759 Electric Strike, 310-4-24D-630-LCBMA
Category: HES by ASSA ABLOY, Access Control, Locking Devices, Electric Strikes
UPC Code: 740090047485
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number HE-030033759 Brand Name HES by ASSA ABLOY Manufacturer Part Number 18103759 Product Name HES 310-4-24D-630-Lcbma 18103759 Electric Strike, 24 Volt Dc, 0.25 Ampere, Satin Stainless Steel, Latchbolt And Locking Cam Monitor With Auxiliary Switch, For 3/4" Pullman Style Latchbolt On Single Door Product Type Electric Strike
Compatible Door Lock Type Rim Exit Holding Strength 1000-1500 lb Material Stainless Steel Security Configuration Fail Secure
Color Silver Depth 0.5" Height 9" Width 1.75"
Input Voltage 24V DC
Limited Warranty 5-Year
Certifications & Standards UL Listed Country of Origin US Features Horizontal Adjustment, Static Strength
