HES 1006-12/24D-606 1006 Series Electric Strike Body, 12VDC/24VDC, Satin Brass
1006-12/24D-606
|HE-100610405
Shop all HES by ASSA ABLOY

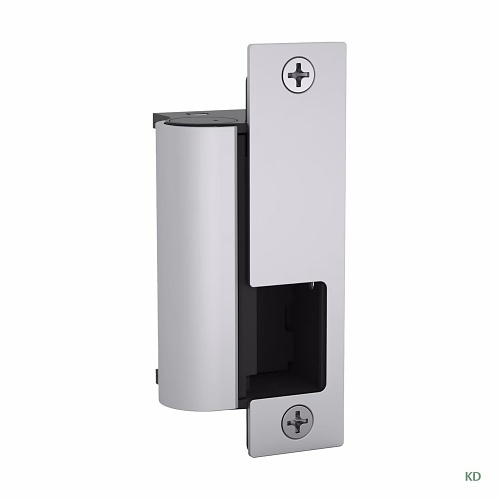

HES 1006-12/24D-606 1006 Series Electric Strike Body, 12VDC/24VDC, Satin Brass
1006-12/24D-606 | HE-100610405
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The HES 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.
Main Features
- Stainless steel construction
- Tamper resistant
- Static strength 2,500 lbs. (fail secure)
- Dynamic strength 350 ft-lbs. (fail secure)
- Endurance 1,000,000 cycles
- Fail secure (standard)
- Non-handed
- Accommodates up to 1" [25.4mm] deadbolt
- Plug-in connector
- Full keeper shims for horizontal adjustment
General Information
Name: HES 1006-12/24D-606 1006 Series Electric Strike Body, 12VDC/24VDC, Satin Brass
Category: HES by ASSA ABLOY, Access Control, Locking Devices, Electric Strikes
UPC Code: 740090041063
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number HE-100610405 Brand Name HES by ASSA ABLOY Manufacturer Part Number 10620405 Product Name Door Electric Strike, Universal, 12/24 Vdc, 0.45/0.25A, 3070 Lb Static Load, Satin Stainless Steel Product Series 1006 Product Type Electric Strike
Compatible Door Lock Type Cylindrical, Mortise Material Stainless Steel Security Configuration Fail Secure
ADI Part Number Replaces HE-100610005 Model Number Replaces 1006-12/24D-606
Depth 2.06" Height 4.87" Width 1.68"
Input Voltage 12V DC, 24V DC
Country of Origin US Features Adjustable Keeper
