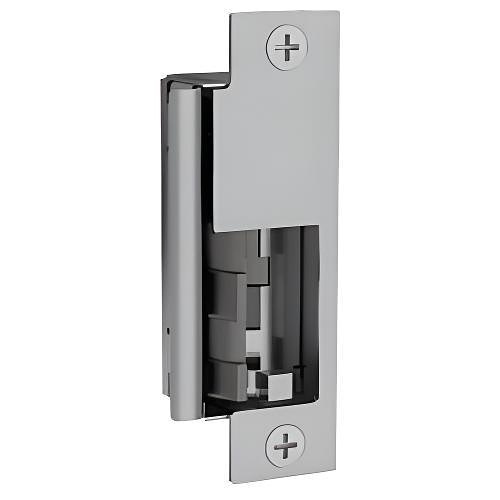

HES 8500-605-LBM 8500 Series Universal Electric Strike with Latchbolt Monitor, Bright Brass
8500-605-LBM
|HE-10700408
Shop all HES by ASSA ABLOY
HES 8500-605-LBM 8500 Series Universal Electric Strike with Latchbolt Monitor, Bright Brass
8500-605-LBM | HE-10700408
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The HES 8500 series is a fire rated, compact, high performance electric strike featuring a unique concealed design for use with mortise locksets without a deadbolt. Designed for fast, convenient installation, the 8500 installs with little or no modification to the frame. Simply remove the existing strike plate, remove the dust box and install. Its strength is derived from a unique keeper pin locking design, enabling the 8500 to exceed Grade-1 ratings. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire rated frames. The 8500 accommodates mortise latchbolts up to 3/4" throw.
Main Features
- No cutting to the face of the frame
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
- Field selectable fail secure/fail safe
- Non-handed
- Metal or wood frame
- Internally mounted solenoid
General Information
Name: HES 8500-605-LBM 8500 Series Universal Electric Strike with Latchbolt Monitor, Bright Brass
Category: HES by ASSA ABLOY, Access Control, Locking Devices, Electric Strikes
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number HE-10700408 Brand Name HES by ASSA ABLOY Manufacturer Part Number 10700408 Product Name HES 8500-12/24D-630 10700401 Electric Strike Body, Fire Rated, Compact, 12/24 Volt Dc, 0.24/0.12 Ampere, 1-5/16" Depth, Satin Stainless Steel, For 8500 Series Electric Strike Product Series 8500 Product Type Electric Strike
Compatible Door Lock Type Mortise Holding Strength 1000-1500 lb Material Stainless Steel Security Configuration Fail Safe, Fail Secure
Height 4.88" Width 1.25"
Input Voltage 12V AC, 12V DC, 24V AC, 24V DC
Limited Warranty 5-Year
Certifications & Standards UL Listed Features Static Strength
