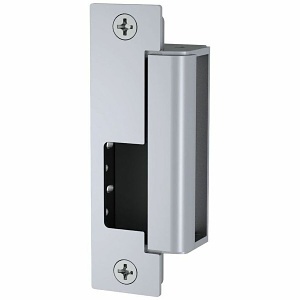

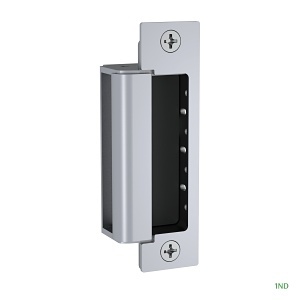

HES 1500-613E-LM 1500 Series Universal Electric Strike, Lock Monitor, Dark Oxidized Satin Bronze Powder
1500-613E-LM
|HE-15B3L
Shop all HES by ASSA ABLOY
HES 1500-613E-LM 1500 Series Universal Electric Strike, Lock Monitor, Dark Oxidized Satin Bronze Powder
1500-613E-LM | HE-15B3L
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The HES 1500 Series® Electric Strikes set a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories. For the first time, the aesthetics of an electric strike are complimentary to other surrounding door hardware and blend in with the opening due to the fully finished design available in eight finishes.
Main Features
- Stainless steel construction
- Tamper resistant
- Static strength 1500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
- Field selectable fail safe/fail secure
- Non-handed
- Interchangeable faceplates and accessories
- Field replaceable components
- Fully finished faceplate, keeper, case and trim
General Information
Name: HES 1500-613E-LM 1500 Series Universal Electric Strike, Lock Monitor, Dark Oxidized Satin Bronze Powder
Category: HES by ASSA ABLOY, Access Control, Locking Devices, Electric Strikes
UPC Code: 740090017006
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number HE-15B3L Brand Name HES by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number 1500-613E-LM Product Name 1500 Electric Strike Product Series 1500 Product Type Electric Strike
Application/Usage Door, Fire Door, Outdoor Compatible Door Frame Type Metal, Wood Compatible Door Lock Type Cylindrical, Mortise Door Handling Non Handed Holding Strength 70lb Material Stainless Steel Security Configuration Field selectable Fail Safe/Fail Secure
Color Bronze Depth 1.375" Height 4.87" Width 1.75"
Input Current 120mA, 240mA Input Voltage 12V DC, 24V DC Power Source AC
Length 0.5"
Limited Warranty 5-Year
Certifications & Standards UL Listed Country of Origin United States Features PoE friendly, Static Strength Indoor/Outdoor Outdoor
