Product Overview

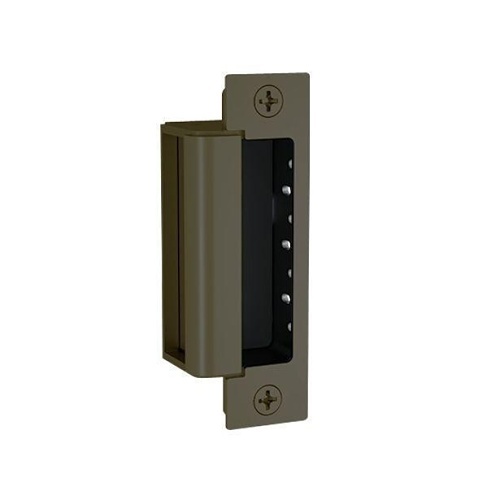

The 1600 Series electric strike accommodates up to a 1" deadbolt with enhanced vertical cavity spacing.
The 1600 Series Electric Strike sets a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories. For the first time, the aesthetics of an electric strike are complementary to other surrounding door hardware and blend in with the opening due to the fully finished design, available in eight finishes.
General Information
Name : HES 1600-CS-613E-LMS 1600 Series Complete Electric Strike with 1LB and 1DB Faceplate Kits, Lock Monitor and Strike Monitor, Dark Oxidized Satin Bronze Powder , HES by ASSA ABLOY
Category : Electric Strikes
UPC Code : 740090020778
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : HE-16S3LS
Brand Name : HES by ASSA ABLOY
Manufacturer : ASSA ABLOY
Manufacturer Part Number : 1600-CS-613E-LMS
Product Model : 1600-CS
Product Name : 1600 Electric Strike
Product Series : 1600
Product Type : Electric Strike
Technical Information
Compatible Door Frame Type : Metal, Wood
Compatible Door Lock Type : Cylindrical, Latch Lock, Mortise
Door Handling : Non Handed
Duty Cycle : 1000000
Electric Strike Assembly : Body with Faceplate
Holding Strength : 1500 lb
Holding Strength (g) : 680388.555
Security Configuration : Fail-safe, Fail-secure
Physical Characteristics
Application/Usage : Door, Door Lock, Fire Door, Industrial, Outdoor
Color Family : Brown
Faceplate Height : 4.88"
Faceplate Height (mm) : 124
Faceplate Width : 1.26"
Faceplate Width (mm) : 32
Keeper Height : 3.23"
Keeper Height (mm) : 82
Product Material : Stainless Steel
Strike Depth : 1.63"
Strike Depth (mm) : 41.3
Power Description
Input Current : 120 mA, 240 mA
Input Current (A) : 0.12, 0.24
Input Voltage : 12V DC, 24V DC
Power Source : DC Supply
Warranty
Limited Warranty : 5 Year
Miscellaneous
Certifications & Standards : ANSI/BHMA A156.31, Grade 1, ANSI/SDI A250.13 windstorm resistant, ASTM-E152 fire door compliant, California Fire Marshal listed, CAN/ULC-S104 fire door conformant, NFPA-252 fire door compliant, UL 1034 burglary-resistant listed and suitable for outdoor use, UL 10C fire rated, 1-1/2 hour double door (fail secure only), UL 10C fire rated, 3-hour single door (fail secure only), UL 294 Listed
Features : Burglary Resistant, Dual Voltage, Field Adjustable Integrated Shim, Field Selectable Operation, Fire Rated, Interchangeable Faceplate Design, Lock Status Monitoring, PoE Friendly, Static Strength, Strike Monitor, Tamper Resistant, Windstorm Resistant
Package Contents : <ul><li> 1600 Electric Strike</li><li> 1LB Faceplate Kit for Latchbolts</li><li> 1DB Faceplate kit for Deadbolts</li></ul>
