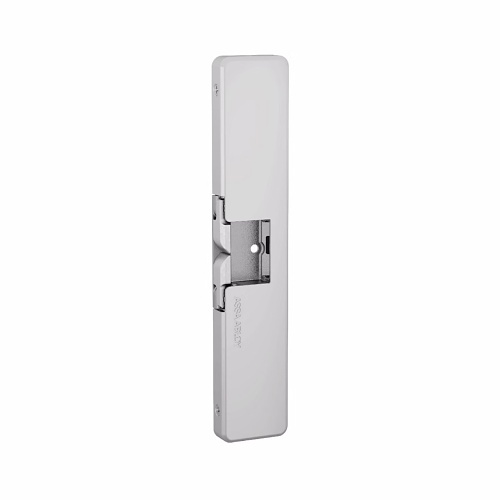

HES 9400-612 Surface-Mounted Electric Strike, Satin Bronze
9400-612
|HE-94612
Shop all HES by ASSA ABLOY
HES 9400-612 Surface-Mounted Electric Strike, Satin Bronze
9400-612 | HE-94612
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The HES 9400 series is a slim-line, outdoor rated surface mounted electric strike designed to accommodate rim exit devices with a 1/2" Pullman latch. All components are completely encased within its 5/8" thick stainless steel housing. No cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install.
An 1/8" spacer plate is provided to accommodate varying door gaps. The 9400 exceeds Grade 1 standards for strength and performance. It is field selectable for fail safe/fail secure operation, and for 12 or 24 VDC. The 9400 features a smooth cover to conceal the mounting screws and provide a sleek surface for superior looks.
Main Features
- Installs in metal and wood frames (wood screws not included)
- Wood screws not provided
- One 1/8" spacer plate included
- Decorative cover for sleek new look
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
- Field selectable fail secure/fail safe
General Information
Name: HES 9400-612 Surface-Mounted Electric Strike, Satin Bronze
Category: HES by ASSA ABLOY, Access Control, Locking Devices, Electric Strikes
UPC Code: 740090010427
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number HE-94612 Brand Name HES by ASSA ABLOY Manufacturer Part Number 9400-612 Product Name HES 9400-612 9400-612 12/24 Vdc, 9400 Series Strike, Slime Lin Product Series 9400 Product Type Electric Strike
Compatible Door Lock Type Rim Exit Holding Strength 70 lb Material Stainless Steel Security Configuration Fail Safe, Fail Secure
Depth 0.56" Height 9" Width 1.75"
Input Voltage 12V DC, 24V DC Power Source AC
Finishing Satin
Country of Origin US Features Horizontal Adjustment, Internally Mounted Solenoid, Surface Mount Indoor/Outdoor Outdoor
