HES 9700-613E-LBM 9700 Series Surface Mounted Electric Strike LBM, Dark Oxidized Satin Bronze-Equivalent
9700-613E-LBM
|HE-9700613BM
Shop all HES by ASSA ABLOY
HES 9700-613E-LBM 9700 Series Surface Mounted Electric Strike LBM, Dark Oxidized Satin Bronze-Equivalent
9700-613E-LBM | HE-9700613BM
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

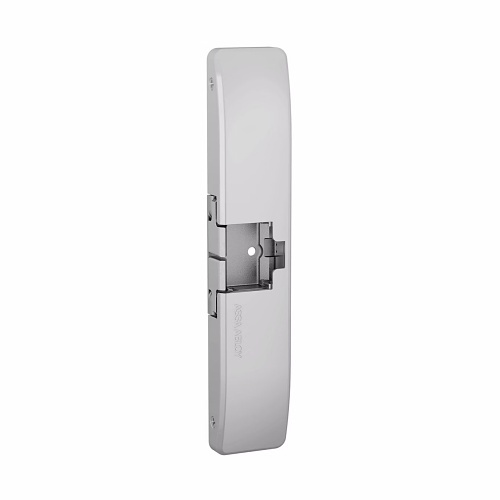

The 9700 Series is a heavy duty, surface mounted electric strike designed to accommodate Corbin Russwin® Securebolt® and ASSA ABLOY ACCENTRA™ Squarebolt® exit devices. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. It is field selectable for fail secure and fail safe operation, and for 12 or 24 VDC. The 9700 is designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing. This unique electric strike also complies with NFPA 80-07 guidelines for retrofit into fire rated frames.
Main Features
- Separate base and decorative cover for easy adjustments
- Stainless steel construction
- Tamper resistant
- Static strength to 2,000 lbs
- Dynamic strength to 120 ft-lbs
- Endurance 1,000,000 cycles
- Field selectable fail safe/fail secure
- Horizontal adjustability
- Non-handed
- Internally mounted solenoid
General Information
Name: HES 9700-613E-LBM 9700 Series Surface Mounted Electric Strike LBM, Dark Oxidized Satin Bronze-Equivalent
Category: HES by ASSA ABLOY, Access Control, Locking Devices, Electric Strikes
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number HE-9700613BM Brand Name HES by ASSA ABLOY Manufacturer Part Number 9700-613E-LBM Product Name HES 9700-613E-Lbm Windstorm And Fire Rated Square Bolt Solution Surface Mounted Electric Strike With Latchbolt Monitor In Dark Oxidized Satin Bronze Product Series 9700 Product Type Electric Strike
Holding Strength 70lb Material Stainless Steel Security Configuration Fail Secure
Depth 0.75" Height 9" Width 1.75"
Input Voltage 12V DC, 24V DC Power Source AC
Country of Origin United States Features Fire Rated, Horizontal Adjustment, Internally Mounted Solenoid, Latchbolt Strike Monitor Indoor/Outdoor Outdoor
