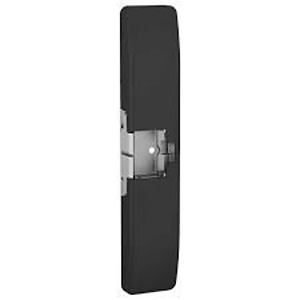

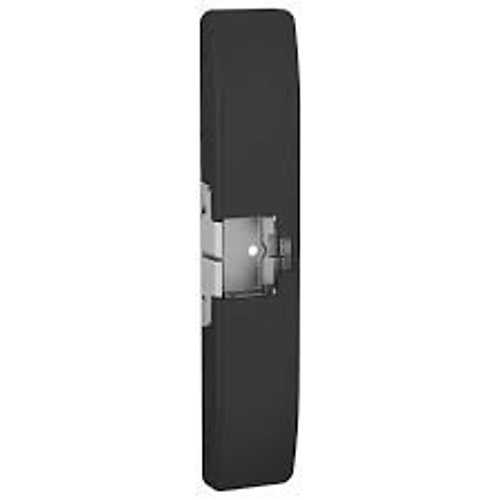

HES 9700-BSP-LBM 9700 Series Surface Mounted Electric Strike LBM, Black Suede Powder
9700-BSP-LBM
|HE-9700BSPLB
Shop All HES by ASSA ABLOY
HES 9700-BSP-LBM 9700 Series Surface Mounted Electric Strike LBM, Black Suede Powder
9700-BSP-LBM | HE-9700BSPLB
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The 9700 Series is a heavy duty, surface mounted electric strike designed to accommodate Corbin Russwin® Securebolt® and ASSA ABLOY ACCENTRA™ Squarebolt® exit devices. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. It is field selectable for fail secure and fail safe operation, and for 12 or 24 VDC.
The 9700 is designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing. This unique electric strike also complies with NFPA 80-07 guidelines for retrofit into fire rated frames.
Specifications
ADI Part Number HE-9700BSPLB Brand Name HES by ASSA ABLOY Manufacturer Part Number 9700-BSP-LBM Product Name HES 9400-Bsp-Lbm 9400-Bsp-Lbm Slim-Line,Rim,Surf Mt,Latchbltgenesis Iii,Black Product Series 9700 Product Type Electric Strike
Holding Strength 1500 lb Material Stainless Steel Security Configuration Fail Safe, Fail Secure
Color Black Depth 0.75" Height 9" Width 1.75"
Input Voltage 12V DC, 24V DC
Limited Warranty 5-Year
Certifications & Standards UL Listed Features Fire Rated, Horizontal Adjustment, Internally Mounted Solenoid, Latchbolt Strike Monitor, Surface Mount
