Product Overview

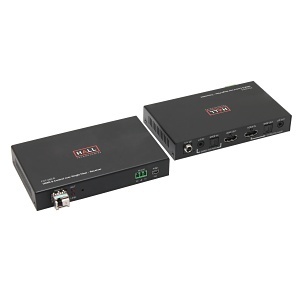

The Hall Research FXT-460 is a compact and high-performance extender for full-bandwidth HDMI 2.0 audio/video with HDR, up to 10 Kilometers, over a single strand of LC-terminated fiber-optic cable.The product supports 18.2 Gbps of bandwidth and 600 MHz TMDS Clock frequency and can extend 4K 60 Hz video with multi-channel audio and RS232. The system provides advanced capabilities such as embedding and de-embedding audio, 4K UHD video (4:4:4 with HDR), HDCP 2.0, bidirectional RS-232 and EDID management.The FXT-460-S Sender provides an HDMI input with a corresponding HDMI loop output. The audio component of the HDMI input is extracted and available as both analog (L/R) and Digital SPDIF (TOSLINK) on corresponding connectors. EDID management allows users to control the video and audio parts of the EDID independently. The EDID presented to the source connected to the HDMI input can pass from the downstream device or emulated from internal memory. The device can also learn the EDID connected to its HDMI output.The product has a video bandwidth of 18 Gbps and supports input resolutions of up to 4K at 60 Hz 4:4:4 with HDR. It supports HDCP 2.2 as well as HDCP 1.4. All resolutions up to and including 4K at 30Hz with 4:4:4 or 4K at 60 Hz with 4:2:0 are extended with no compression. The device has the ability to generate a blank HDMI output signal with audio embedded even if there is no HDMI input, often referred to as HDMI Audio Bridging. This is a convenient means to distribute audio only signals over an HDMI network.
Main Features
- 4K x 2K at 60 Hz 4:4:4 / 18.2 Gbps / HDCP 2.2
- Extends up to 33,000 ft (10 Km) over single mode or 1000 ft (300 M) Multi-Mode
- Bi-Directional RS-232 and EDID Management
- Can pass original HDMI audio or embed/substitute audio from external inputs
- HDMI Audio Bridging
- HDMI Loop Output on Sender
- De-embedded HDMI audio available at both ends (Sender and Receiver)
- EDID Emulation with LEARN function
General Information
Name: Hall FXT-460 4K HDMI Fiber Optic Extender
Category: Hall Technologies, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Extenders, Pro HDMI Extenders
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number HH-FXT460 Brand Name Hall Technologies Manufacturer Part Number FXT-460
Number of HDMI Inputs 1 Number of HDMI Outputs 1
Frequency 47-63 Hz
Graphics Modes 4K
Environmental Certification CE, FCC Environmentally Friendly Yes
