Image of HH-HTRANGER2

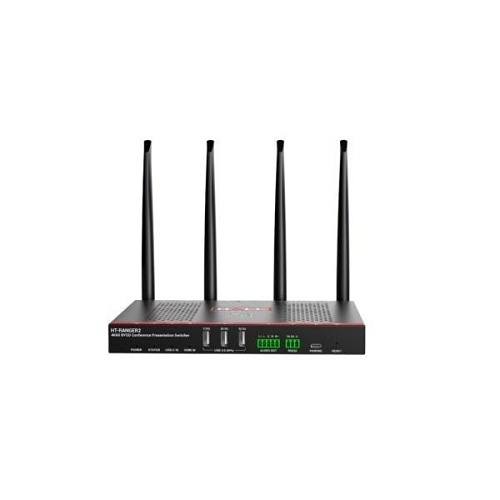

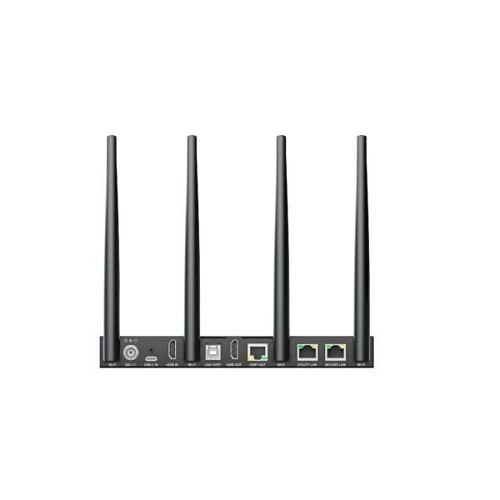

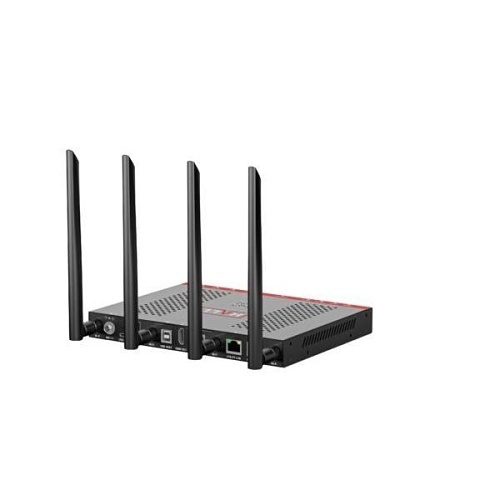

Hall HT-RANGER2 4K BYOD Conference Presentation Switcher

HT-RANGER2|HH-HTRANGER2

Hall HT-RANGER2 4K BYOD Conference Presentation Switcher

HT-RANGER2|HH-HTRANGER2
Key Features
  • USB-C Port with video input, USB3.0, charging, and Ethernet
  • Dual view presentation
  • Built-in Wi-Fi module for wireless connectivity with devices over AirPlay, Miracast, Smart View, and HT-VOYAGER2
Key Features
  • USB-C Port with video input, USB3.0, charging, and Ethernet
  • Dual view presentation
  • Built-in Wi-Fi module for wireless connectivity with devices over AirPlay, Miracast, Smart View, and HT-VOYAGER2

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • USB-C Port with video input, USB3.0, charging, and Ethernet
  • Dual view presentation
  • Built-in Wi-Fi module for wireless connectivity with devices over AirPlay, Miracast, Smart View, and HT-VOYAGER2
Hall Technologies

Hall HT-RANGER2 4K BYOD Conference Presentation Switcher

HT-RANGER2 | HH-HTRANGER2

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The HT-RANGER2 from Hall Technologies is a state-of-the-art BYOD (Bring Your Own Device) presentation switcher, designed to deliver seamless connectivity and exceptional performance for modern meeting spaces, classrooms, and collaborative environments. With its built-in Wi-Fi module, the HT-RANGER2 supports multiple wireless presentation options, including AirPlay, Miracast, Smart View, and HT-VOYAGER, in addition to physical connections via HDMI and USB-C ports. This flexibility allows users to project content from their devices to a connected display in either full-screen or dual-view mode. The device supports HDMI input resolutions up to 4K at 30Hz 4:4:4 and outputs up to 4K at 60Hz 4:4:4 (4:2:0 for HDBT output). Featuring automatic signal switching, CEC, a detailed Guide Screen, and an intuitive On-Screen Display (OSD), the HT-RANGER2 streamlines presentations for an intuitive user experience.

Main Features

  • USB-C Port with video input, USB3.0, charging, and Ethernet
  • Dual view presentation
  • Built-in Wi-Fi module for wireless connectivity with devices over AirPlay, Miracast, Smart View, and HT-VOYAGER2
  • Supports HDMI input resolutions up to 4K at 30Hz 4:4:4
  • Supports HDMI output resolutions up to 4K at 60Hz 4:4:4 (4:2:0 on HDBT out)
  • Built-in Ethernet switch with security design
  • Detailed On Screen Display (OSD) information
  • Device control using Web UI and Telnet API
  • Laptops connected to the HT-RANGER2 using the USB-C interface can access USB peripheral devices (i.e. cameras, microphones) connected to USB-A ports on the HT-RANGER2

General Information

Name: Hall HT-RANGER2 4K BYOD Conference Presentation Switcher
Category: Hall Technologies, Pro AV, Commercial Video Conferencing, Video Conference Controllers
UPC Code: 0656750713587
Country of Origin: China. Country of origin is subject to change.
