Hall UH-BT HDMI Wallplate/HDBaseT Class B Transmitter Receiver
UH-BT
|HH-UHBT
Shop all Hall Technologies
Hall UH-BT HDMI Wallplate/HDBaseT Class B Transmitter Receiver
UH-BT | HH-UHBT
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

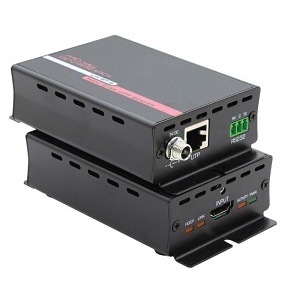

This HDBaseT extension kit is comprised of a compact Sender (UH-BT-S) and corresponding Receiver (UH-BT-R). The UH-BT and UH-BTX are a family of HDBaseT compliant. Senders and Receivers used to extend uncompressed HDMI video and RS-232 control signals up to 230 ft (-BT models) or 328 ft (-BTX models) over a single CAT5e/CAT6 UTP cable. The extenders are comprised of a Sender (-S) and a Receiver (-R) and extend all PC and HD resolutions without compression, up to 4K UHD. Full-duplex RS-232 extension is provided via 3-pin terminal blocks, supporting all baud rates up to 115,200 bps.
Main Features
- Extends HDMI (or DVI) + RS-232 over a single CAT5e/CAT6 UTP cable up to 230/328 ft (70/100 m) depending on Model
- Optional Long Reach mode (BTX Only) to extend 1080p up to 492 ft / 150 m
- Utilizes HDBaseT Class B (HDBaseT-Lite) extension technology
- Can connect to all HDBaseT and HDBaseT-Lite compliant products
- Full HD support for 1080p deep color, 3D, and 4K UHD
- HDCP Compliant with pass-thru EDID from display back to source
- CEC pass-thru for simplified control among compatible devices
- Uncompressed digital video extension guarantees 100% fidelity
- Reliable, trouble free operation
- Plug and Play-no user configuration required
General Information
Name: Hall UH-BT HDMI Wallplate/HDBaseT Class B Transmitter Receiver
Category: Hall Technologies, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Extenders, Pro HDMI Extenders
UPC Code:
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number HH-UHBT Brand Name Hall Technologies Manufacturer Part Number UH-BT
Number of HDMI Inputs 1 Number of HDMI Outputs 1
Frequency 50-60 Hz
Environmental Certification CE, FCC Environmentally Friendly Yes
