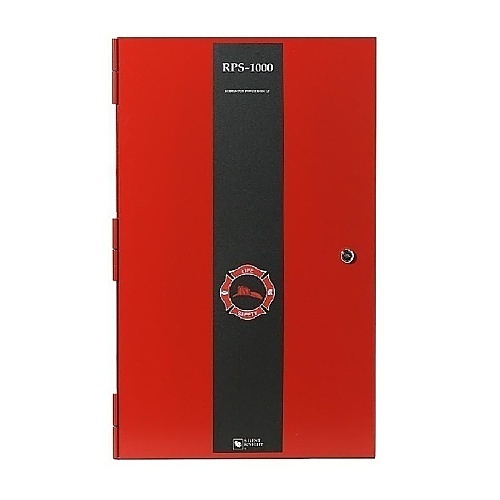

Image of I2-00RPS1000

Farenhyt 00RPS-1000 6A Intelligent Distributed Power Module, Red Cabinet

00RPS-1000|I2-00RPS1000

Farenhyt 00RPS-1000 6A Intelligent Distributed Power Module, Red Cabinet

00RPS-1000|I2-00RPS1000
Key Features
  • Supports Class A (Style 6) and Class B (Style 4) configuration of the SBUS
  • Two Form C programmable relays rated at 2.5A at 24V DC
  • Ground loop isolation and transient protection
Key Features
  • Supports Class A (Style 6) and Class B (Style 4) configuration of the SBUS
  • Two Form C programmable relays rated at 2.5A at 24V DC
  • Ground loop isolation and transient protection

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Supports Class A (Style 6) and Class B (Style 4) configuration of the SBUS
  • Two Form C programmable relays rated at 2.5A at 24V DC
  • Ground loop isolation and transient protection
Honeywell Farenhyt Series

Farenhyt 00RPS-1000 6A Intelligent Distributed Power Module, Red Cabinet

00RPS-1000 | I2-00RPS1000

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

00RPS-1000 is an intelligent distributed power module that adds 6.0 amps of power, six Flexput I/O circuits, and two Form C relay circuits to a compatible Honeywell Farenhyt Series addressable system. The RPS-1000 is available in a red (RPS-1000) or black (RPS-1000B) cabinet. The RPS- 1000 connects to the FACP via the RS-485 system bus allowing up to an additional 6,000 feet of wiring. Each RPS- 1000 is optically isolated providing ground loop isolation and transient protection. RPS-1000 supports its own backup battery and monitors the AC power.

Main Features

  • Supports Class A (Style 6) and Class B (Style 4) configuration of the SBUS
  • Two Form C programmable relays rated at 2.5A at 24V DC
  • Ground loop isolation and transient protection
  • Provides SBUS optical isolation and re-conditions the RS- 485 signal
  • Built-in synchronization for appliances from System Sensor, AMSECO, Gentex, and Wheelock
  • Up to 6,000 foot wiring distance from the RPS-1000
  • Battery charging capacity is 35AH
  • Large cabinet size can house two 18AH backup batteries or RBB accessory cabinet can house battery sizes larger that 18AH
  • Room to mount two 6815 or 5815XL SLC expander modules

General Information

Name: Farenhyt 00RPS-1000 6A Intelligent Distributed Power Module, Red Cabinet
Category: Honeywell Farenhyt Series, Fire, Fire Control Panels, Control Panel Modules
UPC Code: 783196008479
Country of Origin: United States. Country of origin is subject to change.
